Application

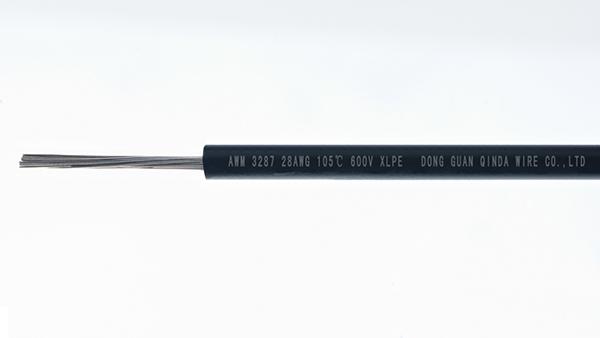

XLPE Insulated cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.
Parameters
Rated Voltage: 600V
Rated Temperature: 105℃
Standard: UL758
Conductor | Insulation | Max.Cond | Unit length | |||
Resistance | (M)( Ft ) | |||||
Size | Construction | Diameter | Nominal thcikness | Diameter | ( Ω/KM ) | |
( AWG ) | ( No./mm ) | (mm) | (mm) | (mm) | ||
32 | 7/0.08 | 0.24 | 0.76 | 1.76 | 600 | (610)/(2000) |
30 | 7/0.10 | 0.31 | 0.76 | 1.83 | 361 | (610)/(2000) |
28 | 7/0.127 | 0.39 | 0.76 | 1.91 | 227 | (610)/(2000) |
26 | 7/0.16 | 0.49 | 0.76 | 2.01 | 143 | (610)/(2000) |
24 | 11/0.16 | 0.61 | 0.76 | 2.21 | 89.3 | (610)/(2000) |
22 | 17/0.16 | 0.76 | 0.76 | 2.37 | 51.35 | (610)/(2000) |
20 | 21/0.18 | 0.95 | 0.76 | 2.58 | 32.85 | (610)/(2000) |
18 | 16/0.254 | 1.18 | 0.76 | 2.85 | 21.29 | (305)/(1000) |
16 | 26/0.254 | 1.5 | 0.76 | 3.19 | 13.32 | (305)/(1000) |
14 | 41/0.254 | 1.88 | 0.76 | 3.64 | 8.44 | (305)/(1000) |
12 | 65/0.254 | 2.37 | 0.76 | 4.16 | 5.32 | (305)/ (1000) |
10 | 105/0.254 | 3.41 | 0.76 | 5.36 | 3.29 | (305) |
