Application

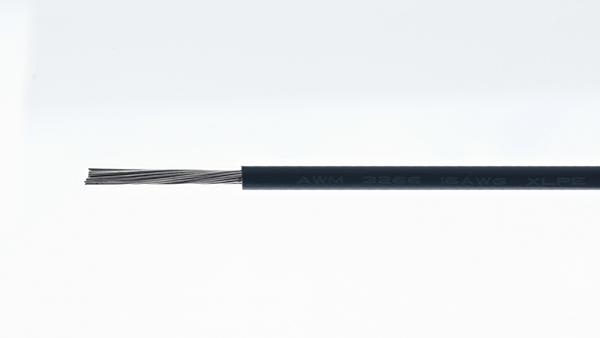

XLPE Insulated cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.
Parameters
Rated Voltage: 300V
Rated Temperature: 125℃
Standard: UL758
Conductor | Insulation | Max.Cond | Unit length | |||
Resistance | (M)( Ft ) | |||||
Size | Construction | Diameter | Nominal thickness | Diameter | ( Ω/KM ) | |
( AWG ) | ( No./mm ) | (mm) | (mm ) | (mm) | ||
32 | 710.08 | 0.24 | 0.39 | 1.02 | 600 | (610)/(2000) |
30 | 710.1 | 0.30 | 0.39 | 1.08 | 361 | (610)/(2000) |
28 | 7/0.127 | 0.38 | 0.39 | 1.16 | 227 | (610)/(2000) |
26 | 7/0.16 | 0.48 | 0.39 | 1.26 | 143 | (305)/(1000) |
24 | 11/0.16 | 0.60 | 0.39 | 1.38 | 89.3 | (305)/(1000) |
22 | 17/0.16 | 0.76 | 0.39 | 1.54 | 56.4 | (305)/(1000) |
20 | 21/018 | 0.94 | 0.39 | 1.72 | 35.2 | (305)/(1000) |
18 | 16/0.254 | 1.18 | 0.39 | 1.96 | 22.2 | (305)/(1000) |
16 | 26/0.254 | 1.50 | 0.39 | 2.28 | 14 | (305)/(1000) |
14 | 41/0.254 | 1.89 | 0.39 | 2.67 | 8.78 | (305)/(1000) |
12 | 65/0.254 | 2.37 | 0.39 | 3.15 | 5.53 | (305)/(1000) |
10 | 105/0.254 | 3.02 | 0.39 | 3.8 | 3.476 | (305)/(1000) |
