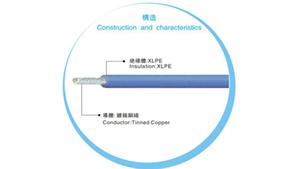

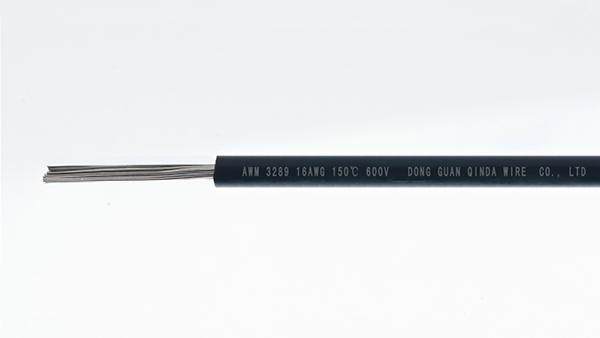

UL3289 Low Smoke Zero Halogen XLPE Cable

Application
XLPE Insulated cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.

Parameters
Rated Voltage: 600V
Rated Temperature: 150℃
Standard: UL758

UL Style No.3289
Conductor Insulation Max.Cond Unit length
Resistance (M)( Ft )
Size Construction Diameter Nominal thickness (mm) Diameter ( Ω/KM )
( AWG ) ( No./mm ) (mm) (mm)
30 7/0.10 0.3 0.78 1.86 361 ( 305 ) / ( 1000 )
28 7/0.127 0.38 0.78 1.94 227 ( 305 ) / ( 1000 )
26 7/0.16 0.48 0.78 2.04 143 ( 305 ) / ( 1000 )
24 11/0.16 0.6 0.78 2.16 89.3 ( 305 ) / ( 1000 )
22 17/0.16 0.76 0.78 2.32 56.4 ( 305 ) / ( 1000 )
20 21/0.18 0.94 0.78 2.49 35.2 ( 305 ) / ( 1000 )
18 16/0.254 1.18 0.78 2.73 22.2 ( 305 ) / ( 1000 )
16 26/0.254 1.5 0.78 3.06 14 ( 305 ) / ( 1000 )
14 41/0.254 1.89 0.78 3.45 8.78 ( 305 ) / ( 1000 )
12 65/0.254 2.37 0.78 3.93 5.53 ( 305 ) / ( 1000 )
10 105/0.254 3.02 0.78 4.58 3.476 ( 305 ) / ( 1000 )
9 133/0.254 3.36 0.78 4.92 2.73 ( 305 ) / ( 1000 )
8 133/0.28 3.75 1.15 6.05 2.16 ( 100 ) / ( 328 )
7 65/0.45 4.21 1.53 7.27 2.16 ( 100 ) / ( 328 )
6 84/0.45 4.79 1.53 7.85 1.716 ( 100 ) / ( 328 )
4 133/0.45 6.02 1.53 9.08 1.361 ( 100 ) / ( 328 )
2 212/0.45 7.6 1.53 10.66 0.8559 ( 100 ) / ( 328 )
