Application

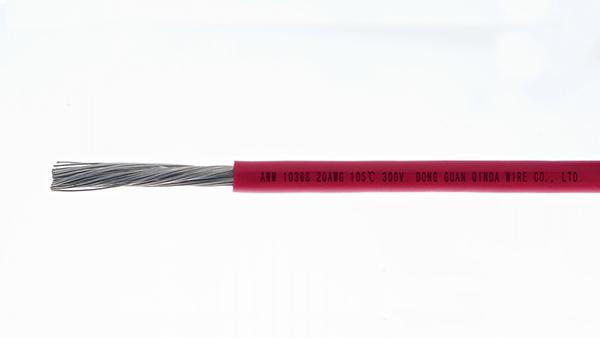

XLPE Insulated cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.
Parameters
Rated Voltage: 300V
Rated Temperature: 105℃
Standard: UL758
UL | Range | Conductor | Insulation | Tolerance | Maximum Conductor Resistance Q/km | |||
10368 | Temp | Voltage | AWG | NO./mm | Thickness | O. D | mm | |
℃ | V | (mm ) | ||||||
Multicore Wire | 105 ℃ | 300V | 32 | 7/0.080 | 0.23 | 0.75 | ±0.10 | 600 |
30 | 7/0.100 | 0.23 | 0.8 | ±0.10 | 361 | |||
28 | 7/0.127 | 0.23 | 0.9 | ±0.10 | 227 | |||
26 | 7/0.160 | 0.23 | 1 | ±0.10 | 143 | |||
24 | 11/0.160 | 0.23 | 1.15 | ±0.10 | 89.3 | |||
22 | 17/0.160 | 0.23 | 1.3 | ±0.10 | 62.5 | |||
20 | 21/0.180 | 0.23 | 1.5 | ±0.10 | 39.5 | |||
18 | 34/0.180 | 0.23 | 1.75 | ±0.10 | 24.4 | |||
Singlecore Wire | 105 ℃ | 300V | 16 | 26/0.254 | 0.23 | 2.05 | ±0.10 | 15.6 |
28 | 1/0.320 | 0.23 | 0.8 | ±0.10 | 232 | |||
26 | 1/0.404 | 0.23 | 0.9 | ±0.10 | 155 | |||
24 | 1/0.500 | 0.23 | 1 | ±0.10 | 92.4 | |||
22 | 1/0.643 | 0.23 | 1.15 | ±0.10 | 60.1 | |||
20 | 1/0.813 | 0.23 | 1.3 | ±0.10 | 37 | |||
18 | 1/1.020 | 0.23 | 1.5 | ±0.10 | 22 |
