Application

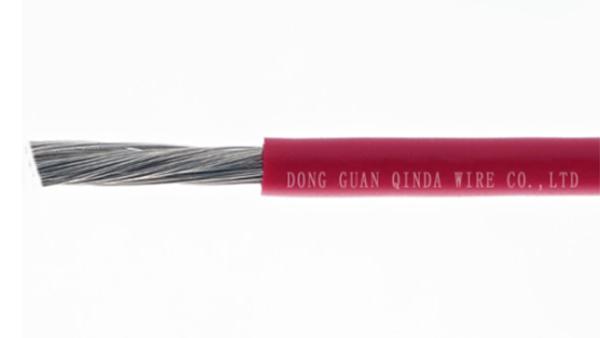

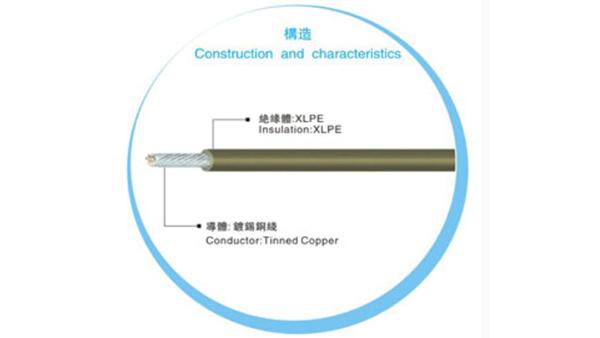

XLPE Insulated cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.
Parameters
Rated Voltage: 150V
Rated Temperature: 125℃
Standard: UL758
Conductor | Insulation | Max.Cond Resistance ( Ω/km ) | Unit length | |||
Size | Construction | Diameter | Thickness | Diameter | (M)( Ft ) | |
( AWG ) | (No./mm) | (mm) | (mm) | (mm) | ||
32 | 7/0.08 | 0.24 | 0.26 | 0.76 | 600 | (610)(2000) |
30 | 7/0.10 | 0.3 | 0.26 | 0.82 | 361 | (610)(2000) |
28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 227 | (610)(2000) |
26 | 7/0.16 | 0.48 | 0.26 | 1.00 | 143 | (305)(1000) |
24 | 11/0.16 | 0.6 | 0.26 | 1.12 | 89.3 | (305)(1000) |
22 | 17/0.16 | 0.76 | 0.26 | 1.27 | 56.4 | (305)(1000) |
20 | 21/0.18 | 0.94 | 0.26 | 1.46 | 35.2 | (305)(1000) |
18 | 16/0.254 | 1.18 | 0.26 | 1.70 | 22.2 | (305)(1000) |
16 | 26/0.254 | 1.5 | 0.26 | 2.02 | 14 | (305)(1000) |
