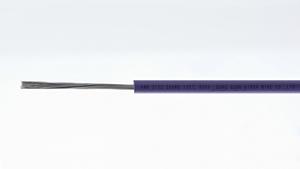

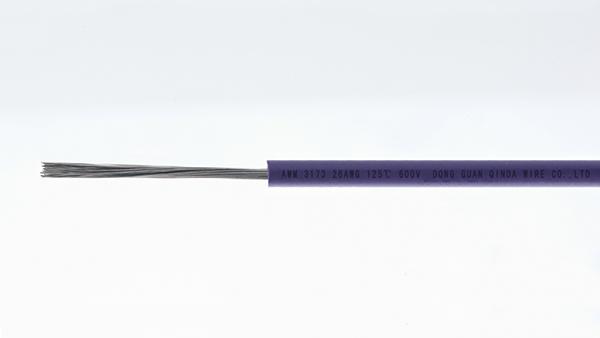

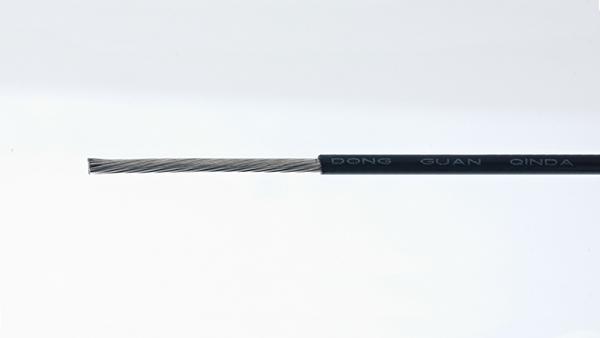

UL3173 9-AWG to 26-AGW XLPE Cable

Application

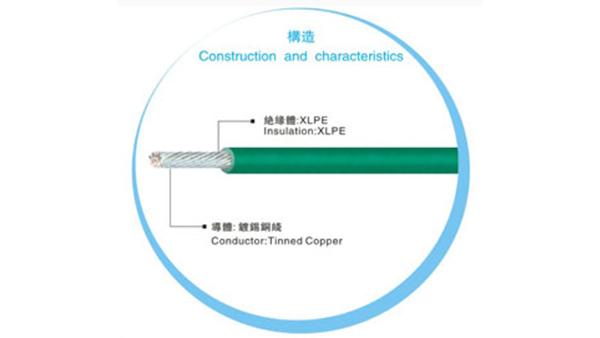

XLPE Insulated cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.

Parameters
Rated Voltage: 600V
Rated Temperature: 125℃
Standard: UL758

UL Style No.3173
Conductor Insulation Max.Cond Resistance Unit length
Size Construction Diameter Thickness Diameter ( Ω/km ) (M( Ft )
( AWG ) ( NO./mm ) (mm) (mm) (mm)
26 7/0.16 0.48 0.78 2.04 143 (305)(1000)
24 11/0.16 0.6 0.78 2.16 89.3 (305)(1000)
22 17/0.16 0.76 0.78 2.32 56.4 (305)(1000)
20 21/0.18 0.94 0.78 2.49 35.2 (305)(1000)
18 16/0.254 1.18 0.78 2.73 22.2 (305)(1000)
16 26/0.254 1.5 0.78 3.06 14 (305)(1000)
14 41/0.254 1.89 0.78 3.45 8.78 (305)(1000)
12 65/0.254 2.37 0.78 3.93 5.53 (305)(1000)
10 105/0.254 3.02 0.78 4.58 3.476 (305)(1000)
9 133/0.254 3.36 0.78 4.92 2.73 (305) (1000)
