Application

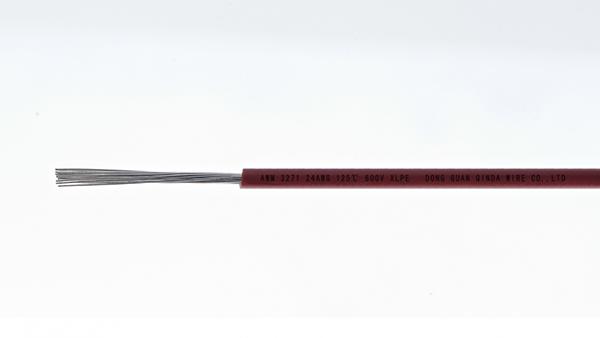

XLPE Insulated cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.
Parameters
Rated Voltage: 600V
Rated Temperature: 125℃
Standard: UL758
Conductor | Insulation | Max.Cond | Unit length | |||
Resistance | (M)( Ft ) | |||||
Size | Construction | Diameter | Nominal thickness (mm ) | Diameter | ( Ω/KM ) | |
( AWG ) | (No./mm) | (mm) | (mm) | |||
30 | 7/0.10 | 0.3 | 0.78 | 1.86 | 361 | (305)/(1000) |
28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 227 | (305)/(1000) |
26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | (305)/(1000) |
24 | 11/0.16 | 0.6 | 0.78 | 2.16 | 89.3 | (305)/(1000) |
22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | (305)/(1000) |
20 | 21/0.18 | 0.94 | 0.78 | 2.49 | 35.2 | (305)/(1000) |
18 | 16/0.254 | 1.18 | 0.78 | 2.73 | 22.2 | (305)/(1000) |
16 | 26/0.254 | 1.5 | 0.78 | 3.06 | 14 | (305)/(1000) |
14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 8.78 | (305)/(1000) |
12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 5.53 | (305)/(1000) |
10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 3.476 | (305)/(1000) |
9 | 133/0.254 | 3.36 | 0.78 | 4.92 | 2.73 | (305)/(1000) |
8 | 133/0.28 | 3.75 | 1.15 | 6.05 | 2.16 | (100)/(328) |
6 | 84/0.45 | 4.79 | 1.15 | 7.09 | 1.361 | (100)/(328) |
4 | 133/0.45 | 6.02 | 1.15 | 8.32 | 0.8559 | (100)/(328) |
2 | 212/0.45 | 7.6 | 1.15 | 9.9 | 0.5384 | (100)/(328) |
