Application

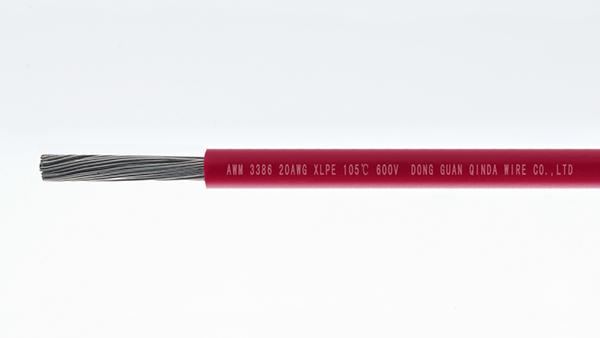

XLPE Insulated cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.
Parameters
Rated Voltage: 600V
Rated Temperature: 105℃
Standard: UL758
UL 3386 | Range | Conductor | Insulation | Tolerance Mm | Maximum Conductor Resistance Ω/km | ( VAC/min ) Insulation Pote tial Strength | |||
Temp ℃ | Voltage V | AWG | NO./mm | Thickness mm | O.D | ||||
Multicore Wire | 105 ℃ | 600V | 30 | 7/0.100 | 0.76 | 185 | 0.10 | 361 | 2000 |
28 | 7/0.127 | 0.76 | 1.90 | 0.10 | 227 | ||||
26 | 7/0.160 | 0.76 | 2.10 | 0.10 | 143 | ||||
24 | 11/0.160 | 0.76 | 2.20 | 0.10 | 89.3 | ||||
22 | 17/0.160 | 0.76 | 2.40 | 0.10 | 62.5 | ||||
20 | 21/0.180 | 0.76 | 2.60 | 0.10 | 39.5 | ||||
18 | 34/0.180 | 0.76 | 2.80 | 0.10 | 24.4 | ||||
16 | 26/0.254 | 0.76 | 3.10 | 0.15 | 15.6 | ||||
14 | 41/0.254 | 0.76 | 3.50 | 0.20 | 9.90 | ||||
12 | 65/0.54 | 0.76 | 4.10 | 0.20 | 6.24 | ||||
10 | 1/0.254 | 0.76 | 4.80 | 0.25 | 4.15 | ||||
Singlecore Wire | 105 ℃ | 600V | 30 | 105/0.254 | 0.76 | 1.80 | 0.10 | 377 | |
28 | 1/0.320 | 0.76 | 1.85 | 0.10 | 232 | ||||
26 | 1/0.404 | 0.76 | 1.95 | 0.10 | 155 | ||||
24 | 1/0.500 | 0.76 | 2.15 | 0.10 | 92.4 | ||||
22 | 1/0.643 | 0.76 | 2.30 | 0.10 | 60.1 | ||||
20 | 1/0.813 | 0.76 | 2.45 | 0.10 | 37.0 |
