Application

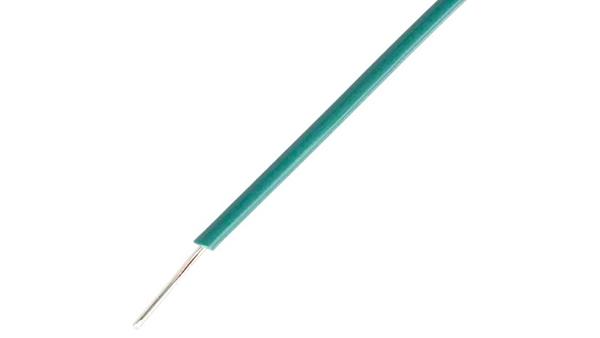

XLPE Insulated cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.
Parameters
Rated Voltage: 300V
Rated Temperature: 105℃
Standard: UL758
UI | Range | Conductor | Insulation | Tolerance | Maximum Conductor Resistance | ( VAC/min ) Insulation Pote tial Strength | |||
3385 | Temp | Voltage | AWG | No./mm | Thickness | O. D . | mm | Ω/km | |
℃ | V | mm | |||||||
Multicore Wire | 105 ℃ | 300V | 30 | 7/0.100 | 0.38 | 1.1 | ±0.10 | 361 | 2000 |
28 | 7/0.127 | 0.38 | 1.2 | ±0.10 | 227 | ||||
26 | 7/0.160 | 0.38 | 1.3 | ±0.10 | 143 | ||||
24 | 11/0.160 | 0.38 | 1.45 | ±0.10 | 89.3 | ||||
22 | 17/0.160 | 0.38 | 1.6 | ±0.10 | 62.5 | ||||
20 | 21/0.180 | 0.38 | 1.85 | ±0.10 | 39.5 | ||||
18 | 34/0.180 | 0.38 | 2.1 | ±0.10 | 24.4 | ||||
16 | 26/0.254 | 0.38 | 2.35 | ±0.10 | 15.6 | ||||
Singlecore Wire | 105 ℃ | 300V | 14 | 41/0.254 | 0.38 | 2.8 | ±0.10 | 9.9 | |
28 | 1/0.320 | 0.38 | 1.15 | ±0.10 | 232 | ||||
26 | 1/0.404 | 0 38 | 1.25 | ±0.10 | 155 | ||||
24 | 1/0.500 | 0.38 | 1.35 | ±0.10 | 92.4 | ||||
22 | 1/0.643 | 0.38 | 1.5 | ±0.10 | 60.1 | ||||
20 | 1/0.813 | 0.38 | 1.65 | ±0.10 | 37.0 | ||||
18 | 1/1.020 | 0.38 | 1.85 | ±0.10 | 22.0 |
