Application

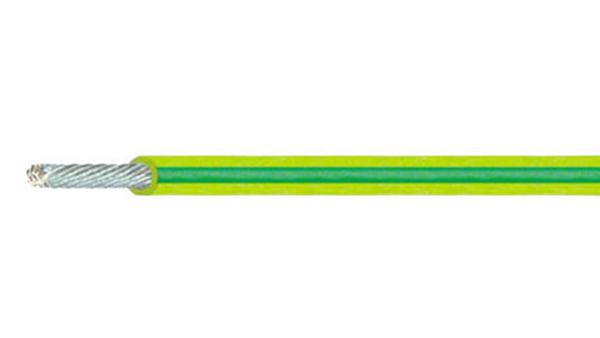

XLPE electric cable suits a variety of home appliances, temperature sensors and electronics and used as internal line.
Parameters
Rated Voltage: 30V
Rated Temperature: 150℃
UL | Range | Conductor | Insulation | Tolerance | Maximum Conductor Resistance O/km | ( VAC/min ) Insulation Potential Strength | |||
3302 | Temp | Voltage | AWG | NO./mm | Thickness | O.D | mm | ||
℃ | V | mm | |||||||
Multicore Wire | 105 ℃ | 30V | 32 | 7/0.080 | 0.20 | 0.65 | ±0.10 | 600 | 500 |
30 | 7/0.100 | 0.20 | 0.70 | ±0.10 | 361 | ||||
28 | 7/0.127 | 0.20 | 0.80 | ±0.10 | 227 | ||||
26 | 7/0.160 | 0.20 | 0.90 | ±0.10 | 143 | ||||
24 | 11/0.160 | 0.20 | 1.05 | ±0.10 | 89.3 | ||||
22 | 17/0.160 | 0.20 | 1.20 | ±0.10 | 62.5 | ||||
20 | 21/0.180 | 0.20 | 1.40 | ±0.10 | 39.5 | ||||
18 | 34/0.180 | 0.20 | 1.70 | ±0.10 | 24.4 | ||||
Singlecore Wire | 105 ℃ | 30V | 30 | 1/0.254 | 0.20 | 0.65 | ±0.10 | 377 | |
28 | 1/0.320 | 0.20 | 0.75 | ±0.10 | 232 | ||||
26 | 1/0.404 | 0.20 | 0.85 | ±0.10 | 155 | ||||
24 | 1/0.500 | 0.20 | 0.95 | ±0. 10 | 924 | ||||
22 | 1/0.643 | 0.20 | 1.10 | ±0.10 | 60.1 | ||||
20 | 1/0.813 | 0.20 | 1.25 | ±0.10 | 37 | ||||
18 | 1/1.020 | 0.20 | 1.45 | ±0. 10 | 22 |
