Application
Our product is widely applied in the industries of aviation, metallurgy, petroleum, electronics, instruments, home appliance, lighting, transformer and automotive.
Parameters
Rated Voltage: 300V
Rated Temperature: 80℃
Standard: UL758, UL1581, CSA C22.2No.210.2, SGS

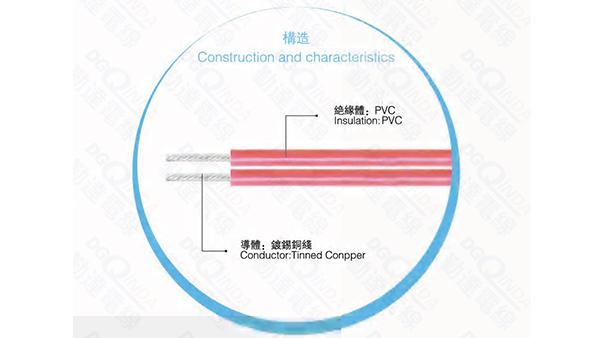

Material: PVC for the insulation and tinned copper wire for the conductor
DimensionsAWG | Conductor | Insulation | Max.Cond Resistance (Ω/km ) | Allowable Current Reference | Kg/ k m | Unit Length Ft/m | |||
NO | Radius mm | 0D | Thick | OD | |||||
28x2C | 7 | 0.12 | 0.36 | 0.38 | 1.12x2.24 | 242 | 1.0 | 5.41 | (305)(1000) |
26x2C | 7 | 0.16 | 0.48 | 0.38 | 1.24x2.48 | 143 | 2.0 | 7.23 | (305)(1000) |
24x 2C | 7 | 0.20 | 0.60 | 0.38 | 1.36x2.72 | 89.3 | 3.0 | 9.38 | (305)(1000) |
24x2C | 11 | 0.16 | 0.61 | 0.38 | 1.37x2.73 | 95.3 | 3.0 | 9.45 | (305)(1000) |
22x 2C | 7 | 0.254 | 0.76 | 0.38 | 1.52x3.04 | 56.1 | 6.0 | 12.83 | (305)(1000) |
22x2C | 17 | 0.16 | 0.76 | 0.38 | 1.52x3.03 | 56.1 | 6.0 | 12.59 | (305)(1000) |
20x2C | 21 | 0.18 | 0.95 | 0.38 | 1.71x3.41 | 35.3 | 8.0 | 17.33 | (305)(1000) |
18x2C | 34 | 0.18 | 1.21 | 0.38 | 1.97x3.93 | 22.2 | 13 | 25.14 | (305)(1000) |
18x2C | 41 | 0.16 | 1.18 | 0.38 | 1.94x3.88 | 22.2 | 13 | 24.21 | (305)(1000) |
28x3C | 7 | 0.12 | 0.36 | 0.38 | 1.12x3.36 | 242 | 1.0 | 8.12 | (305)(1000) |
26x3C | 7 | 0.16 | 0.48 | 0.38 | 1.24x3.72 | 143 | 2.0 | 10.84 | (305)(1000) |
24x3C | 7 | 0.20 | 0.60 | 0.38 | 1.36x4.08 | 89.3 | 3.0 | 14.07 | (305)(1000) |
24x3C | 11 | 0.16 | 0.61 | 0.38 | 1.37x4.1 | 95.3 | 3.0 | 14.18 | (305)(1000) |
22x3C | 7 | 0.254 | 0.76 | 0.38 | 1.52x4.75 | 56.1 | 6.0 | 19.24 | (305)(1000) |
22x3C | 17 | 0.16 | 0.76 | 0.38 | 1.52x4.55 | 56.1 | 6.0 | 18.89 | (305)(1000) |
20x3C | 21 | 0.18 | 0.95 | 0.38 | 1.71x5.12 | 35.3 | 8.0 | 26.00 | (305)(1000) |
18x3C | 34 | 0.18 | 1.21 | 0.38 | 1.97x5.9 | 22.2 | 13 | 37.71 | (305)(1000) |
18x3C | 41 | 0.16 | 1.18 | 0.38 | 1.94x5.82 | 22.2 | 13 | 36.31 | (305)(1000) |
28x4C | 7 | 0.12 | 0.36 | 0.38 | 1.12x4.48 | 242 | 1.0 | 10.82 | (305)(1000) |
26x4C | 7 | 0.16 | 0.4 | 0.38 | 1.24x4.96 | 14.3 | 2.0 | 14.45 | (305)(1000) |
24x4C | 7 | 0.20 | 0.60 | 0.38 | 1.36x5.44 | 89.3 | 3.0 | 18.76 | (305)(1000) |
24x4C | 11 | 0.16 | 0.61 | 0.38 | 1.37x5.46 | 95.3 | 3.0 | 18.91 | (305)(1000) |
22x4C | 7 | 0.254 | 0.76 | 0.38 | 1.52x6.09 | 56.1 | 6.0 | 25.66 | (305)(1000) |
22x4C | 17 | 0.16 | 0.76 | 0.38 | 1.52x6.06 | 56.1 | 6.0 | 25.18 | (305)(1000) |
20x4C | 21 | 0.18 | 0.95 | 0.38 | 1.71x6.83 | 35.3 | 8.0 | 34.67 | (305)(1000) |
18x4C | 34 | 0.18 | 1.21 | 0.38 | 1.97x7.87 | 22.2 | 13 | 50.29 | (305)(1000) |
18x4C | 41 | 0.16 | 1.18 | 0.38 | 1.94x7.76 | 22.2 | 13 | 48.42 | (305)(1000) |
