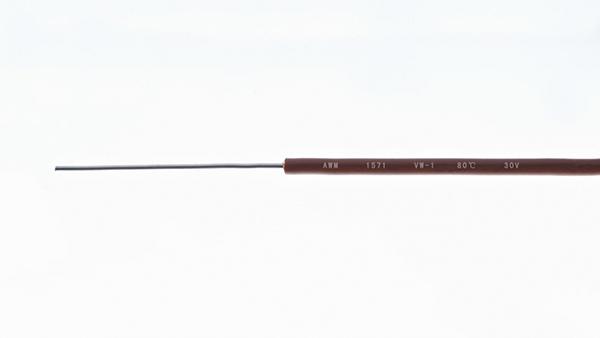

Application
Our PVC insulated cable is used as the inner connecting wire of electronic devices.
Parameters
Rated Voltage: 30V
Rated Temperature: 80℃
Standard: ULWV-1 vertical flame retardant test

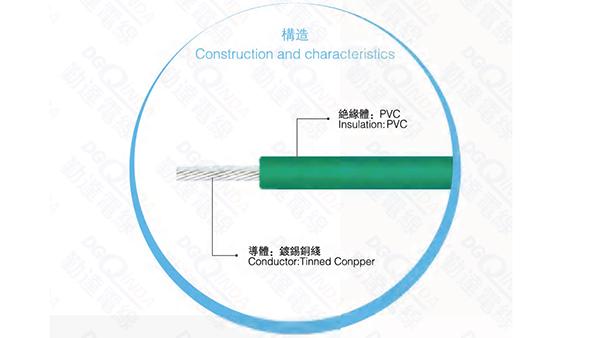

Material: PVC for the insulation and tinned copper wire for the conductor
UI 1571 | Range | Conductor | Insulation | Tolerance mm | Maximum Conductor Resistance Ω/km | Minimum Insulation Resistance Ω/km | ( VAC/min ) Insulation Potential Strength | |||
Temp ℃ | Voltage V | AWG | NO./mm | Thickness mm | O .D mm | |||||
Multicore Wire | 80 ℃ | 30V | 34 | 7/0.060 | 0.20 | 0.60 | ±0.05 | 932 | 15 | 500 |
32 | 7/0.080 | 0.20 | 0.60 | ±0.05 | 600 | |||||
30 | 7/0.100 | 0.20 | 0.70 | ±0.05 | 361 | |||||
28 | 7/0.127 | 0.20 | 0.80 | ±0.05 | 227 | |||||
26 | 7/0.160 | 0.20 | 0.90 | ±0.05 | 143 | |||||
24 | 11/0.160 | 0.20 | 1.05 | ±0.05 | 88.6 | |||||
Wire frist twisted and then plated | 80 ℃ | 30V | 34 | 7/0.060 | 0.20 | 0.60 | ±0.05 | 932 | ||
32 | 7/0.080 | 0.20 | 0.65 | ±0.05 | 600 | |||||
30 | 7/0.100 | 0.20 | 0.70 | ±0.05 | 361 | |||||
28 | 7/0.127 | 0.20 | 0.80 | ±0.05 | 227 | |||||
26 | 7/0.160 | 0.20 | 0.90 | ±0.05 | 143 | |||||
24 | 7/0.200 | 0.20 | 1.05 | ±0.05 | 88.6 | |||||
Singlecore Wire | 80 ℃ | 30V | 32 | 1/0.203 | 0.20 | 0.60 | ±0.05 | 575 | ||
30 | 1/0.254 | 0.20 | 0.65 | ±0.05 | 377.0 | |||||
28 | 1/0.32 | 0.20 | 0.75 | ±0.05 | 245.0 | |||||
26 | 1/0.404 | 0.20 | 0.85 | ±0.05 | 155 | |||||
24 | 1/0.511 | 0.20 | 0.95 | ±0.05 | 924 |
