Application

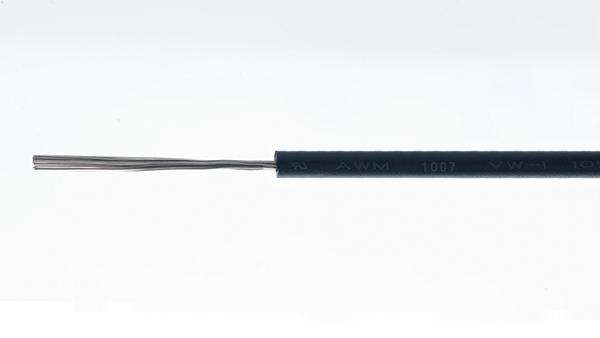

Our PVC insulated cable is used as the inner connecting wire of electronic equipment and appliance.
Parameters
Rated Voltage: 300V
Rated Temperature: -60~+80℃
Standard: UL758 UL1581
Material: PVC for the insulation and tinned copper wire for the conductor
UL Style No.1007AWG | Conductor | Insulation | Max.Cond Resistance ( Ω/KM ) | Allowable current reference | kg/km | Unit length ft/m | |||
NO | mm | OD | Thick | OD | |||||
32 | 7 | 0.08 | 0.25 | 0.40 | 1.05 | 600 | 0.6 | 1.56 | (4000)(1220) |
30 | 7 | 0.10 | 0.30 | 0.40 | 1.10 | 361 | 1.5 | 1.84 | (4000)(1220) |
28 | 7 | 0.12 | 0.35 | 0.40 | 1.15 | 237 | 2.0 | 2.16 | (4000)(1220) |
26 | 7 | 0.16 | 0.50 | 0.40 | 1.30 | 143 | 3.0 | 3.06 | (4000)(1220) |
24 | 7 | 0.20 | 0.60 | 0.40 | 1.40 | 89.3 | 4.0 | 3.96 | (915)(3000) |
22 | 7 | 0.254 | 0.80 | 0.40 | 1.60 | 56.1 | 6.0 | 5.67 | (915)(3000) |
20 | 21 | 0.18 | 1.00 | 0.40 | 1.80 | 34.6 | 9.0 | 7.82 | (915)(3000) |
20 | 26 | 0.16 | 1.00 | 0.40 | 1.80 | 34.6 | 9.0 | 7.75 | (915)(3000) |
18 | 16 | 0.254 | 1.20 | 0.40 | 2.00 | 22.2 | 14 | 10.8 | (915)(3000) |
16 | 26 | 0.254 | 1.50 | 0.40 | 2.30 | 16.6 | 18 | 16.1 | (610)(2000) |
