Application
Our product suits electric rice cooker, hair dryer, transformer, air conditioner, lighting and electric oven.
Parameters
Rated Voltage: 300V
Rated Temperature: 105℃
Standard: UL VW-1, CSA Ft1

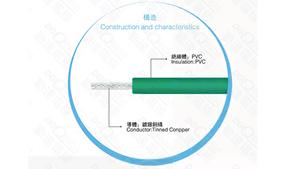

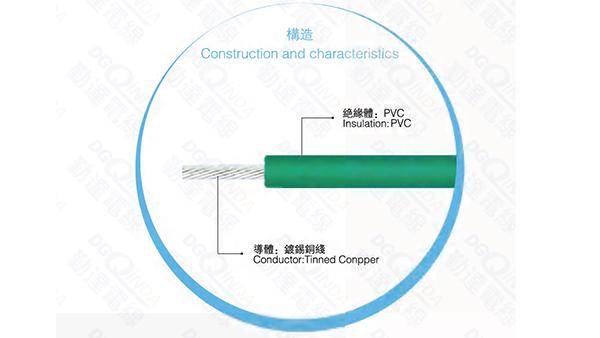

Material: PVC for the insulation and tinned copper wire for the conductor
UI 1430 CSA AWM 1A/B | Range | Conductor | Insulation | Tolerance mm | Maximum Conductor Resistance Ω/km | (VAC/min ) Insulation Potential Strength | |||
Temp (℃) | Volage V | AWG | No./mm | Thickness mm | OD mm | ||||
Multicore Wire | 105 ℃ | 300V | 30 | 7/0.100 | 0.38 | 1.10 | ±0.10 | 361 | 2000 |
28 | 7/0.127 | 0.38 | 1.20 | ±0.10 | 227 | ||||
26 | 7/0.1.60 | 0.38 | 1.30 | ±0.10 | 143 | ||||
24 | 11/0.160 | 0.38 | 1.45 | ±0.10 | 88.6 | ||||
22 | 17/0.160 | 0.38 | 1.60 | ±0.10 | 62.5 | ||||
20 | 21/0. 180 | 0.38 | 1.75 | ±0.10 | 39.5 | ||||
18 | 34/0.180 | 0.38 | 2.05 | ±0.10 | 244 | ||||
16 | 26/0.254 | 0.38 | 2.30 | ±0.10 | 15.6 | ||||
Wire first twisted and then plated | 105 ℃ | 300V | 30 | 7/0.100 | 0.38 | 1.10 | ±0.10 | 361 | |
28 | 7/0.127 | 0.38 | 1.20 | ±0.10 | 227 | ||||
26 | 7/0.160 | 0.38 | 1.30 | ±0.10 | 143 | ||||
24 | 7/0.200 | 0.38 | 1.45 | ±0.10 | 89.3 | ||||
22 | 7/0.254 | 0.38 | 1.60 | ±0.10 | 62.5 | ||||
20 | 7/0.320 | 0.38 | 1.75 | ±0.10 | 39.5 | ||||
Singlecore Wire | 105 ℃ | 300V | 26 | 1/0.404 | 0.38 | 1.25 | ±0.10 | 155 | |
24 | 1/0.511 | 0.38 | 1.40 | ±0.10 | 924 | ||||
22 | 1/0.643 | 0.38 | 1.55 | ±0.10 | 60.1 | ||||
20 | 1/0.813 | 0.38 | 1.70 | ±0.10 | 37.0 | ||||
18 | 1/1.020 | 0.38 | 1.90 | ±0.10 | 23.6 |
