Application
Our product is widely applied in sound, digital camera, video camera, television, telephone, typewriter, fax machine, printing machine, computer, casher, CD-ROM, VCD, DVD, copying machine, wireless instruments and etc.
Parameters
Rated Voltage: 300V
Rated Temperature: 105℃
Standard: UL758 UL1581 CSA C22.2No.210.2

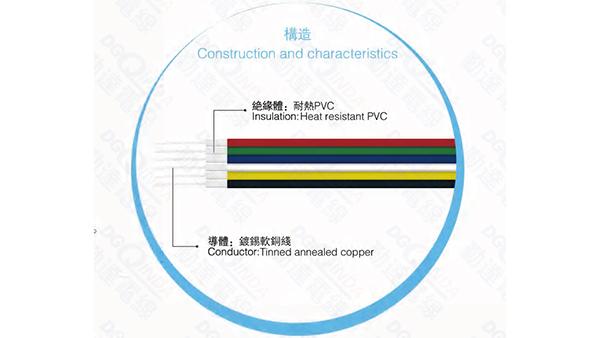

Material: PVC for the insulation and tinned copper wire for the conductor
Number of cond | Conductor | Insulation | Max.Cond.Resistance at 20 ℃ ( Ω/K M) | Dielectric withstanding voltage | (kg/km) | Unit length Spool ( P-30K ) (M) | ||||
AWG Size | Stranding ( NO./mm) | Dia (mm) | Thick (mm) | A (mm) | B (mm) | |||||
2 | 26 | 7/0.16 | 0.48 | 0.41 | 1.3 | 2.7 | 139 | AC.2000V /1min. | 5.8 | 1220 |
3 | 4.1 | 8.8 | 800 | |||||||
4 | 5.5 | 11.8 | 600 | |||||||
5 | 6.9 | 14.7 | 500 | |||||||
6 | 8.3 | 17.7 | 400 | |||||||
2 | 24 | 7/0.203 | 0.61 | 0.345 | 1.3 | 2.7 | 87.6 | 7.1 | 1200 | |
3 | 4.1 | 10.7 | 800 | |||||||
4 | 5.5 | 14.3 | 600 | |||||||
5 | 6.9 | 18 | 500 | |||||||
6 | 8.3 | 21.6 | 400 | |||||||
2 | 22 | 7/0.26 | 0.78 | 0.26 | 1.3 | 2.7 | 55.7 | 9.3 | 850 | |
3 | 4.1 | 13.9 | 550 | |||||||
4 | 5.5 | 18.6 | 450 | |||||||
5 | 6.9 | 23.3 | 350 | |||||||
6 | 8.3 | 28 | 300 |
