Application
Our product is widely applied in the industries of aviation, metallurgy, petroleum, electronics, instruments, home appliance, lighting, transformer and automotive.
Parameters
Rated Voltage: 600V
Rated Temperature: -60℃~+105℃
Standard: UL758 UL1581 CSA SGS

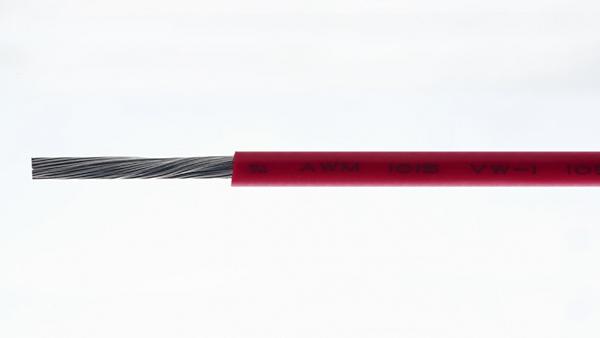

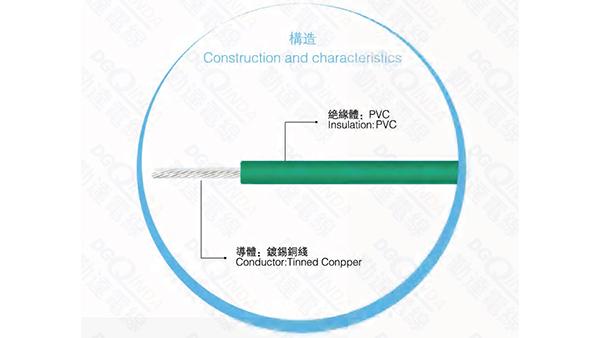

Material: PVC for the insulation and tinned copper wire for the conductor
DimensionsAWG | Conductor | Insulation | Max.Cond Resistance ( Ω/KM ) | Allowable current reference | kg/km | Unit length It/m | |||
Number NO. | Radius mm | OD | Thick | OD | |||||
30 | 7 | 0 . 10 | 0.30 | 0.76 | 1.80 | 361 | 1.5 | 4.23 | (1220)(4000) |
28 | 7 | 0 . 12 | 0.36 | 0.76 | 1.85 | 242 | 2.0 | 4 64 | (1220)(4000) |
26 | 7 | 0.16 | 0.50 | 0.76 | 2.00 | 143 | 3.0 | 5.75 | (1220)(4000) |
24 | 7 | 0.20 | 0.60 | 0.76 | 2.10 | 89.3 | 4.0 | 6.85 | (915)(3000) |
22 | 7 | 0.254 | 0.80 | 0.76 | 2.30 | 56.1 | 6.0 | 8.89 | (915)(3000) |
20 | 11 | 0.254 | 1.00 | 0.76 | 2.50 | 35.3 | 8.0 | 11.5 | (915)(3000) |
18 | 16 | 0.254 | 1.20 | 0.76 | 2.70 | 22.2 | 13 | 14.7 | (915)(3000) |
16 | 26 | 0.254 | 1.50 | 0.76 | 3.00 | 16.6 | 18 | 20.5 | (610)(2000) |
14 | 41 | 0.254 | 1.90 | 0.76 | 3.50 | 9.50 | 24 | 30.0 | (610)(2000) |
12 | 65 | 0.254 | 2.40 | 0.76 | 4.00 | 5.53 | 30 | 43.5 | (305)(1000) |
10 | 105 | 0.254 | 3.00 | 0.76 | 4.50 | 3.95 | 40 | 63.8 | (305)(1000) |
9 | 133 | 0.254 | 3.40 | 0.76 | 5.00 | 3.30 | 46 | 79.9 | (305)(1000) |
8 | 133 | 0.280 | 3.80 | 1.20 | 6.20 | 2.62 | 59 | 107 | Order requirements |
7 | 133 | 0.310 | 4.20 | 1.20 | 6.60 | 1.93 | 72 | 127 | Order requirements |
6 | 133 | 0.354 | 4.80 | 1.60 | 8.00 | 1.58 | 84 | 173 | Order requirements |
5 | 133 | 0.400 | 5.40 | 1.60 | 8.60 | 1.23 | 96 | 212 | Order requirements |
4 | 133 | 0.446 | 6.00 | 1.60 | 9.20 | 1.03 | 110 | 256 | Order requirements |
3 | 133 | 0.500 | 6.80 | 1.60 | 10.0 | 0.78 | 123 | 313 | Order requirements |
2 | 133 | 0.562 | 7.50 | 1.60 | 10.7 | 0.55 | 151 | 382 | Order requirements |
1 | 133 | 0.631 | 8.50 | 2.00 | 12.5 | 0.48 | 164 | 496 | Order requirements |
1/0 | 133 | 0.710 | 9.50 | 2.00 | 13.5 | 0.39 | 188 | 609 | Order requirements |
2/0 | 133 | 0.800 | 10.6 | 2.00 | 14.6 | 0.31 | 200 | 754 | Order requirements |
3/0 | 133 | 0.900 | 12.0 | 2.00 | 16.0 | 0.24 | 255 | 935 | Order requirements |
4/0 | 133 | 1.000 | 13.5 | 2.00 | 17.5 | 0.19 | 310 | 1142 | Order requirements |
