Application

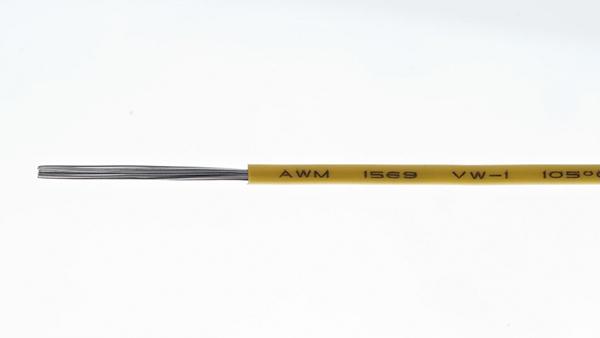

Our cable, UL1569 2-AWG to 30-AGW PVC electrical wire, is widely applied as the inner connecting wire in the industries of aviation, metallurgy, petroleum, electronics, instruments, home appliance, lighting, transformer and automotive.
Parameters
Rated Voltage: 300V
Rated Temperature: -60~+105℃
Standard: UL758, UL1581

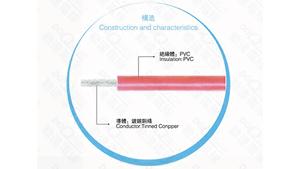

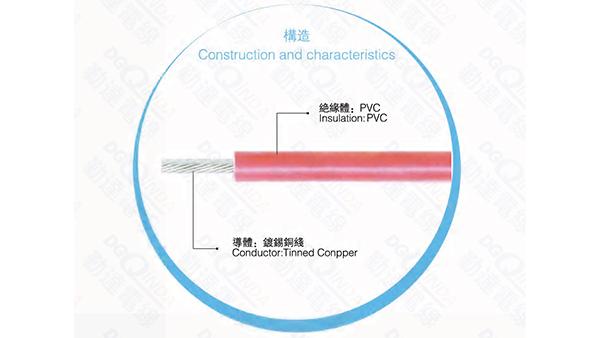

Material: PVC for the insulation and tinned copper wire for the conductor
DimensionsAWG | Conductor | Insulation | Max.Cond Resistance ( Ω/KM ) | Allowable current reference | kg/km | Unit length ft/m | |||
NO | mm | OD | Thick | OD | |||||
30 | 7 | 0.10 | 0.30 | 0.40 | 1.10 | 361 | 1.5 | 1.84 | (1220)(4000) |
28 | 7 | 0.12 | 0.36 | 0.40 | 1.15 | 242 | 2.0 | 2.15 | (1220)(4000) |
26 | 7 | 0.16 | 0.50 | 0.40 | 1.30 | 143 | 3.0 | 3.06 | (1220)(4000) |
24 | 7 | 0.20 | 0.60 | 0.40 | 1.40 | 89.3 | 4.0 | 3.96 | (915)(3000) |
22 | 7 | 0.254 | 0.80 | 0.40 | 1.60 | 56.1 | 6.0 | 5.67 | (915)(3000) |
20 | 11 | 0.254 | 1.00 | 0.40 | 1.80 | 35.3 | 8.0 | 8.0 | (915)(3000) |
18 | 16 | 0.254 | 1.20 | 0.40 | 2.00 | 22.2 | 13 | 10.8 | (915)(3000) |
16 | 26 | 0.254 | 1.50 | 0.40 | 2.30 | 16.6 | 18 | 16.1 | (610)(2000) |
14 | 41 | 0.254 | 1.90 | 0.40 | 2.70 | 9.50 | 24 | 24.2 | (610)(2000) |
12 | 65 | 0.254 | 2.40 | 0.40 | 3.20 | 5.53 | 30 | 36.7 | (305)(1000) |
10 | 105 | 0.254 | 3.00 | 0.40 | 3.80 | 3.95 | 40 | 56.9 | (305)(1000) |
9 | 133 | 0.254 | 3.40 | 0.80 | 5.00 | 3.30 | 46 | 79.9 | (305)(1000) |
B | 133 | 0.280 | 3.80 | 0.80 | 5.40 | 2.62 | 59 | 96 | Order requirements |
7 | 133 | 0.310 | 4.20 | 0.80 | 5.80 | 1.93 | 72 | 115 | Order requirements |
6 | 133 | 0.354 | 4.80 | 0.80 | 6.40 | 1.58 | 84 | 146 | Order requirements |
5 | 133 | 0.400 | 5.40 | 0.80 | 7.00 | 1.23 | 96 | 183 | Order requirements |
4 | 133 | 0.446 | 6.00 | 0.80 | 7.60 | 1.03 | 110 | 224 | Order requirements |
3 | 133 | 0.500 | 6.80 | 0.80 | 8.40 | 0.78 | 123 | 279 | Order requirements |
2 | 133 | 0.562 | 7.50 | 0.80 | 9.10 | 0.55 | 151 | 345 | Order requirements |
