Application

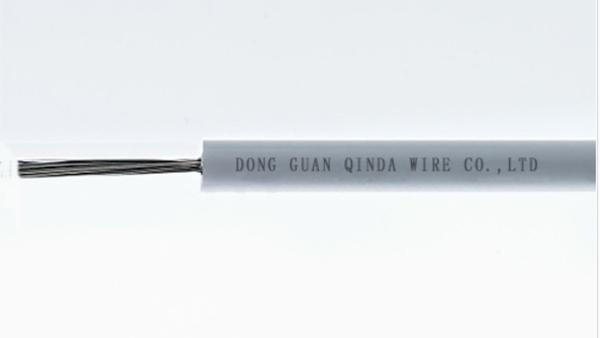

Our PVC insulated cable is used as the inner connecting wire of electronic equipments and appliances.
Parameters
Rated Voltage: 600V
Rated Temperature: 105℃
Standard: ULVW-1, CSAFT1

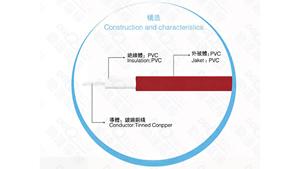

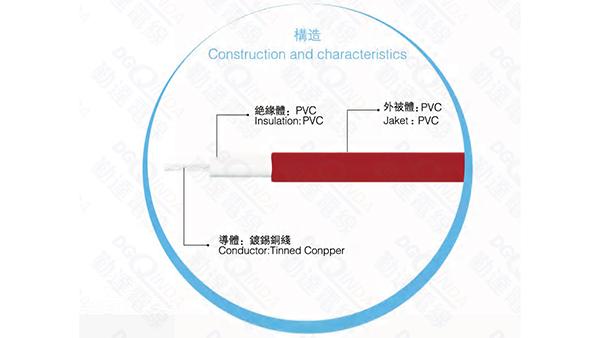

Material: PVC for the insulation and the coat while silver-plated copper wire for the conductor
DimensionsUI 1617 CSA 1A/B | Range | Conductor | Insulation | Tolerance mm | Maximum Conductor Resistance Ω/km | Minimun Insulation Resistance M Ω/km | ( VAC/min ) Insulation Potential Strength | ||||
Temp ℃ | Voltage V | AWG | No./mm | Thickness mm | Jaket mm | O.D mm | |||||
Multicore Wire | 105 ℃ | 600V | 28 | 7/0.127 | 0.76 | 0.40 | 2.70 | ±0.10 | 227 | 15 | 2000 |
26 | 7/0.160 | 0.76 | 0.40 | 2.90 | ±0.10 | 143 | |||||
24 | 11/0.160 | 0.76 | 0.40 | 3.00 | ± 0.10 | 88.6 | |||||
22 | 17/0.160 | 0.76 | 0.40 0.30 | 3.20 2.90 | ±0.10 | 62.5 | |||||
20 | 21/0.180 | 0.76 | 0.40 | 3.40 | ± 0.10 | 39.5 | |||||
18 | 34/0.180 | 0.76 | 0.40 | 3.60 | ±0.10 | 24.4 | |||||
Wire first twisted and then plated | 105 ℃ | 600V | 24 | 7/0.200 | 0.76 | 0.40 | 2.90 | ±0.10 | 88.6 | ||
22 | 7/0.254 | 0.76 | 0.40 | 3.00 | ±0.10 | 54.8 | |||||
20 | 7/0.320 | 0.76 | 0.40 | 3.20 | ±0.10 | 34.1 | |||||
Singlecore Wire | 105 ℃ | 600V | 24 | 1/0.511 | 0.76 | 0.40 | 2.90 | ±0.10 | 92.4 | ||
22 | 1/0.643 | 0.76 | 0.40 | 3.1O | ±0.10 | 60.1 | |||||
20 | 1/0.813 | 0.76 | 0.40 | 3.25 | ±0.10 | 37.0 | |||||
18 | 1/1.020 | 0.76 | 0.40 | 3.50 | ±0.10 | 23.6 |
