Application
Our product is widely applied in the industries of aviation, metallurgy, petroleum, electronics, instruments, home appliance, lighting, transformer and automotive.
Parameters
Rated Voltage: 300V
Rated Temperature: 105℃
Standard: UL758 UL1581 CSA C22.2No.210.2

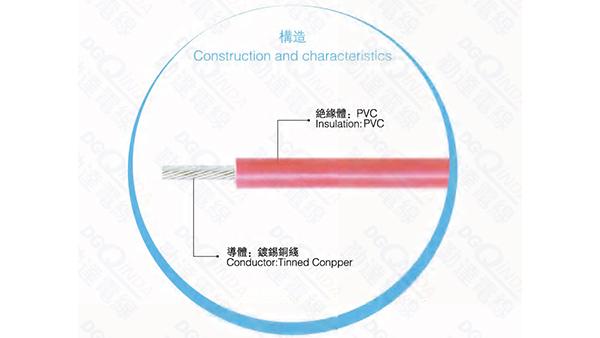

Material: PVC for the insulation and tinned copper wire for the conductor
DimensionsAWG | Conductor | Insulation | External insulation | Max.Cond Resistance ( Ω/km ) | Unit length (M)( Ft ) | ||||
NO. | mm | 0D | Thick | 0.D | Sheath thickness mm | 0.D | |||
28 | 1 | 0.32 | 0.32 | 0.44 | 1.2 | 0.4 | 2 | 227 | (610)/(2000) |
7 | 0.127 | 0.38 | 0.46 | 1.3 | 0.4 | 2.1 | 239 | ||
26 | 1 | 0.404 | 0.4 | 0.45 | 1.3 | 0.4 | 2.1 | 143 | (610)/(2 00) |
7 | 0.16 | 0.48 | 0.46 | 1.4 | 0.4 | 2.2 | 150 | ||
24 | 1 | 0.511 | 0.51 | 0.49 | 1.5 | 0.4 | 2.3 | 89.3 | (610)/(2000) |
11 | 0.16 | 0.61 | 0.49 | 1.6 | 0.4 | 2.4 | 94.2 | ||
22 | 1 | 0.643 | 0.64 | 0.48 | 1 6 | 0.4 | 2.4 | 56.4 | (305)/(1000) |
17 | 0.16 | 0.76 | 0.47 | 1.7 | 0.4 | 2.5 | 59.4 | ||
20 | 1 | 0.813 | 0.81 | 0.44 | 1.7 | 0.4 | 2.5 | 35.2 | (305)/(1000) |
21 | 0.178 | 0.94 | 0.48 | 1.9 | 0.4 | 2.7 | 36.7 | ||
18 | 1 | 1.024 | 1.02 | 0.44 | 1.9 | 0.4 | 2.7 | 22.2 | (305)/(1000) |
16 | 0.254 | 1.17 | 0.47 | 2.1 | 0.4 | 3.1 | 23.2 | ||
34 | 0.178 | 1.2 | 0.45 | 2.1 | 0.4 | 3.1 | 23.2 | ||
16 | 1 | 1.29 | 1.29 | 0.46 | 2.2 | 0.4 | 3 | 14 | (305)/(1000) |
26 | 0.254 | 1.49 | 0.46 | 2.4 | 0.4 | 3.2 | 14.6 | ||
14 | 1 | 1.6 | 1.6 | 0.45 | 2.5 | 0.4 | 3.3 | 8.78 | (305)/(1000) |
41 | 0.254 | 1.88 | 0.46 | 2.8 | 0.4 | 3.6 | 8.96 |
