Application
Our product is widely applied in home appliances, lighting, electronics and temperature sensor and etc.
Parameters
Rated Voltage: 30V
Rated Temperature: 105℃
Standard: UL758 UL1581

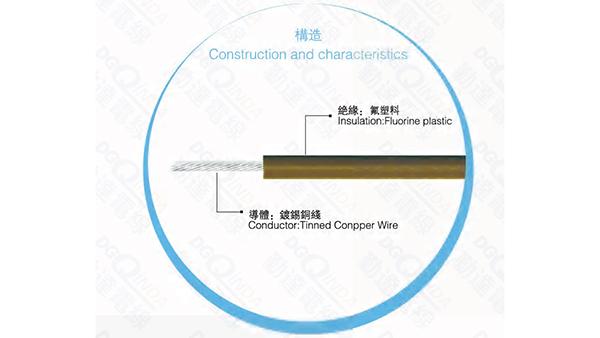

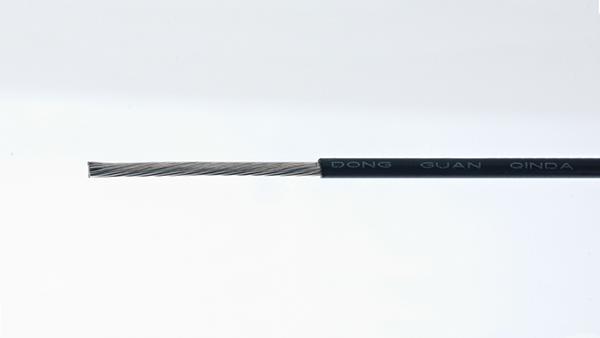

Material: fluoroplastic for the insulation and tinned copper wire for the conductor
UI 10064 CSA AWM 1A/B | Rated Range | Conductor | Insulation | Tolerance Mm | Maximum Conductor Resistance Ω/km | ( VAC/ min) Insulation Potential Strength | |||
Temp ℃ | Voltage V | AWG | NO./mm | Thickness Mm | OD | ||||
Stranded | 105 ℃ | 30V | 36 | 7/0.060 | 0.15 | 0.45 | 0.05 | 1500 | 500 |
34 | 7/0.060 | 0.15 | 0.50 | 0.05 | 932 | ||||
32 | 7/0.080 | 0.15 | 0.55 | 0.05 | 600 | ||||
30 | 7/0.100 | 0.15 | 0.60 | 0.05 | 361 | ||||
28 | 7/0.127 | 0.15 | 0.70 | 0.05 | 227 | ||||
26 | 7/0.160 | 0.15 | 0.80 | 0.05 | 143 | ||||
24 | 7/0.200 | 0.15 | 0.90 | 0.05 | 89.3 | ||||
22 | 7/0.254 | 0.15 | 1.10 | 0.05 | 62.5 | ||||
20 | 7/0.320 | 0.15 | 1.30 | 0.10 | 39.5 | ||||
18 | 19/0.235 | 0.15 | 1.55 | 0.10 | 24.4 | ||||
Solid (TA) | 105 ℃ | 30V | 34 | 1/0.160 | 0.15 | 0.50 | 0.05 | 857 | |
32 | 1/0.200 | 0.15 | 0.55 | 0.05 | 575 | ||||
30 | 1/0.254 | 0.15 | 0.60 | 0.05 | 377 | ||||
28 | 1/0.320 | 0.15 | 0.65 | 0.05 | 232.1 | ||||
26 | 1/0.404 | 0.15 | 0.75 | 0.05 | 155 | ||||
24 | 1/0.500 | 0.15 | 0.85 | 0.05 | 92.4 | ||||
22 | 1/0.643 | 0.15 | 1.00 | 0.05 | 60.1 | ||||
20 | 1/0.813 | 0.15 | 1.15 | 0.05 | 37.0 | ||||
18 | 1/1.020 | 0.15 | 1.35 | 0.10 | 21.8 |
