Application: home appliance, lighting, industry machine, electric heating
Parameters
Rated Voltage: 300V
Rated Temperature: -60℃~200℃
Standard: UL758 UL1581 CSAC22.2 NO.210.2
Color: white, black, red, brown, yellow, blue, green, olivine, lucency

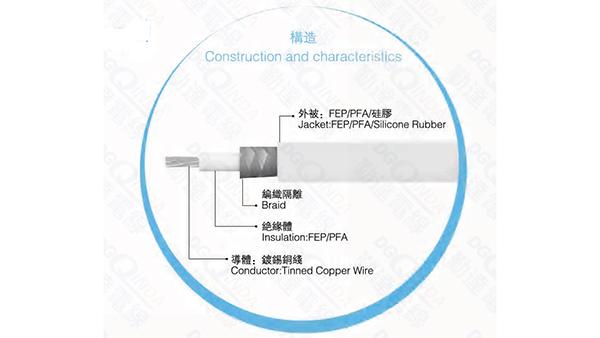

Material: FEP/PFA for the insulation, FEP/PFA/Silicone Rubber for the coat and tinned copper wire for the conductor
Conductor | Insulation | Max.Cond Resistance ( Ω/KM ) | Unit length (M)(Ft) | ||||
Section (mm) | Construction (No./mm) | Diameter (mm) | Nominal thickness (mm) | Pleach Shield | Diameter (mm) | ||
0.12 0.20 0 30 0.50 0.75 1.00 1.25 1 50 2.00 2.50 | 7/0.15 7/0.20 19/0.15 19/0.185 19/ 0 23 19/0.26 19/ 0 29 19/ 0 32 19/0.37 19/0.41 | 0.46 0.61 0.76 0.96 1 16 1.31 1.46 1 61 1.86 2.06 | 0.25 0.25 0.25 0 25 0.25 0 25 0.25 0.25 0.30 0.30 | 5 x 16 x 0.1 5 x 16 x 0.1 5 x 16 x 0.1 5 x 16 x 0.1 5 x 16 x 0.1 6 x 16 x 0.1 6 x 16 x 0.1 6 x 16 x O.1 6 x 16 x O.1 6 x 16 x O.1 | 1.76/2.26 1.91/2.41 2.06/2.56 2.26/2.76 2.46/2.96 2.68/3.28 2.84/3.44 2.98/3.58 3.23/3.83 3.43/4.03 | 150.15 89.3 59.78 40.1 26.7 20 14.35 13.7 8.78 7.16 | (200) (200) (200) (200) (200) (200) (200) (200) (200) (200) |
