VDE8349 Fluoroplastic Heat Resistant and Flame Retardant Cable

Characteristics
Our product, Fluoroplastic Electric Cable & Wire, is heat resistant and flame retarded, what's more, anti-corrosion. High voltage withstanding and low loss at high frequency, which means its long service life, is as outstanding as the excellent product's properties of electrical insulation, high voltage withstanding and low loss at high frequency.

Application
Fluoroplastic Electric Cable and Wire, made by Qinda, has broad application in the environments of high temperature, such as home appliance, lighting, electronic product, instrument and apparatus, electric motors and industrial equipment.

Home appliance: our product can be used as the inner wires of air conditioner, microwave oven, electronic disinfector, electric rice cooker, electric thermos bottle, electric heater, electric oven, electric frying pan, etc.

Electronics: our product can be used as temperature compensation wire, cold-resistant wire, heating wire, anti-aging wire, fire-retarded wire, etc.

Parameters
Rated Voltage: 450/750V
Rated Temperature: 250℃
Standard: VDE0250

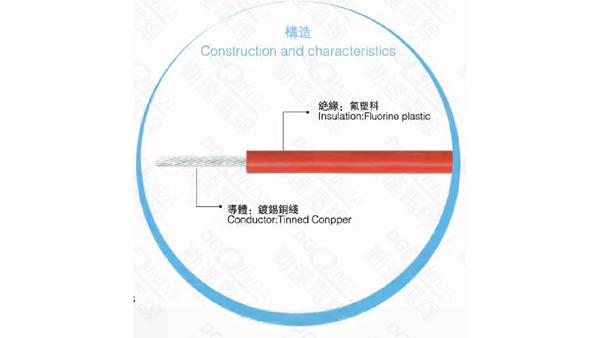

Material: fluoroplastics for the insulation and tinned copper wire for the conductor
Color: white, black, red, brown, yellow, blue, green, olivine, lucency

Material:fluoroplastics for the insulation and tinned copper wire for the conductor

Color:white, black, red, brown, yellow, blue, green, olivine, lucency

VDE 8349
Conductor Isulation Max.Cond Resistance ( Ω/Km ) Permissible Ampacity 30 ℃(Amp ) Unit length M (Ft )
Section (mm2 ) Construction ( No./mm ) Diameter (mm) Insulation thickness (mm) Over Diameter (mm)
0.20 7/0.20 0.61 0.30 1.20 94.0 8 (610) / (2000)
19/0.12 0.60 0.30 1.20 94.0 8 (610) / (2000)
40/0.08 0.58 0.30 1.20 94.0 8 (610) / (2000)
0.30 7/0.254 0.77 0.30 1.36 65.3 10 (610) / (2000)
19/0.15 0.76 0.30 1.36 65.3 10 (610) / (2000)
60/0.08 0.72 0.30 1.36 65.3 10 (610) / (2000)
0 . 50 7/0.31 0.95 0.30 1.56 36.7 15 (610) / (2000)
19/0.185 0.93 0.30 1.56 40.1 15 (610) / (2000)
0.75 1/1.0 1.00 0.30 1.76 24.8 20 (305) / (1000)
7/0.37 1.13 0.30 1.76 24.8 20 (305) / (1000)
19/0.23 1.16 0.30 1.76 26.7 20 (305) / (1000)
1.00 1/1.2 1.20 0.30 1.90 18.2 25 (305) / (1000)
19/0.26 1.31 0.30 1.90 20.0 25 (305) / (1000)
1.25 19/0.30 1.51 0.30 2.10 14.6 32 (305) / (1000)
1.50 19/0.32 1.61 0.30 2.20 13.7 38 (305) / (1000)
2.00 19/0.37 1.86 0.35 2.56 9.0 45 (200) / (656)
2.50 19/0.41 2.06 0.35 2.76 8.2 50 (200) / (656)
4.00 19/1.52 2.61 0.40 3.45 5.1 60 (100) / (328)
6.00 37/0.46 3.23 0.40 4.05 3.4 80 (100) / (328)
