Application
Fluoroplastic High Temperature Cable is widely used as the leading line in the environments of high temperature, such as home appliance, lighting, electronic product, instrument and apparatus, electric motor and industrial equipment.
Parameters
Rated Voltage: 300V
Rated Temperature: -40~+200/250℃
Standard: UL758

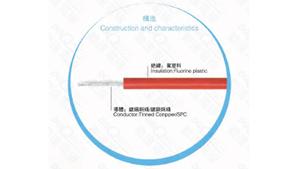

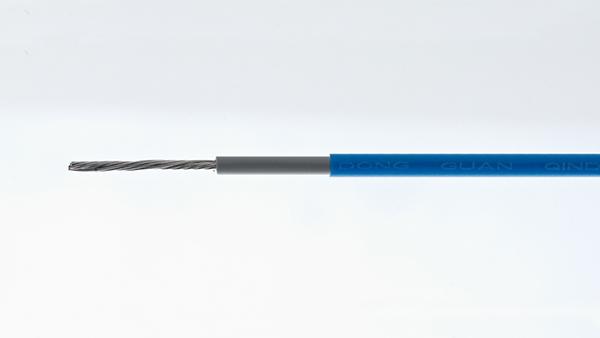

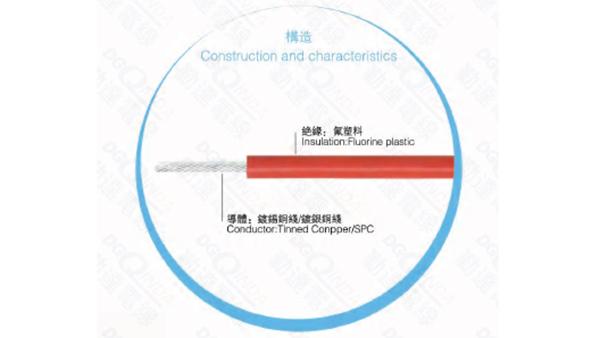

Material: fluoroplastics for the insulation and tinned copper wire for the conductor
Color: white, black, red, brown, yellow, blue, green, olivine, lucency
Specification:Conductor | Insulation | Minimum | Minimum | Dielectric Strength (ACV 1min) | |||
Resistance | Resistance | ||||||
Size | Construction | Out-Dia | Thicknness | Diameler | ( Ω/km 20 ℃) | (M Ω/km 20 ℃) | |
( AWG ) | (No./mm) | (mm) | (mm) | (mm) | |||
40 | 7/0.03 | 0.09 | 0.08 | 0.25 | 4250 | 5 | 500 |
38 | 7/0.04 | 0.12 | 0.08 | 0.28 | 2380 | 5 | 500 |
36 | 7/0.05 | 0.15 | 0.08 | 0.31 | 1500 | 5 | 500 |
34 | 7/0.06 | 0.195 | 0.08 | 0.36 | 932 | 10 | 500 |
32 | 7/0.08 | 0.24 | 0.08 | 0.4 | 600 | 10 | 500 |
30 | 7/0.10 | 0.3 | 0.08 | 0.46 | 361 | 10 | 500 |
28 | 7/0.127 | 0.38 | 0.08 | 0.54 | 227 | 10 | 500 |
26 | 7/0.16 | 0.48 | 0.1 | 0.68 | 143 | 10 | 500 |
24 | 7/0.20 | 0.61 | 0.1 | 0.81 | 89.3 | 10 | 500 |
