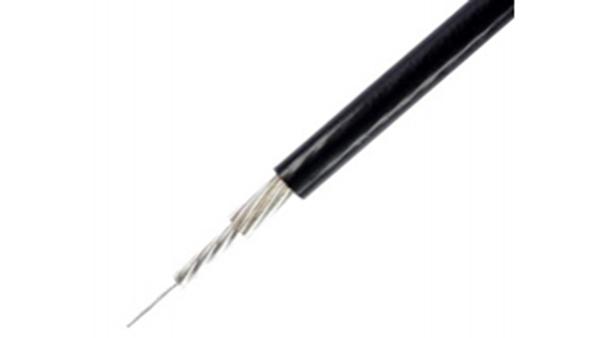

UL1886 Fluoroplastic Heat and Fire Resistant Electric Cable

Fluoroplastic heat and fire resistant electric Cable is widely used as the lead wire in the environments of aviation, metallurgy, home appliance, lighting, electronic product, instrument and apparatus, electric motor and industrial equipment. It can be used as high frequency video cable in high temperature.

Parameters
Rated Voltage: 300V
Rated Temperature: -85~+150℃
Standard: UL758, LU1518

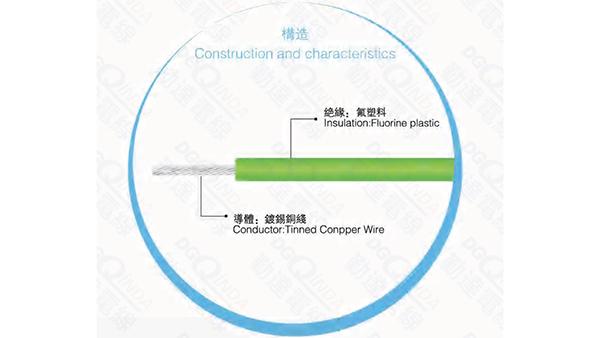

Material: fluoroplastics for the insulation and tinned copper wire for the conductor

Color: white, black, red, brown, yellow, blue, green, olivine, lucency

Specification:
AWG Conductor Insulation Maxcond. Resistance 20 ℃Ω/km Allowabie Current reference Weight kg/km Unit length (M)(Ft)
Number NO. Radius mm Diameter OD Thick DimeterOD
30 7 0.10 0.30 0 .25 0.80 361 0.8 1.48 (1220)/(4000)
28 7 0.12 0.35 0.25 0.85 242 1.0 1.78 (1220)/(4000)
26 7 0.16 0.50 0.25 1.00 143 2.0 2.69 (1220)/(4000)
24 7 0.20 0.60 0.25 1.10 89.3 3.0 3.59 (610)/(2000)
22 19 0.15 0.8 0 0.25 1.30 56.1 6.0 5.20 (610)/(2000)
20 19 0.185 1.00 0.25 1.50 35.3 8.0 7.36 (610)/(2000)
18 19 0.235 1.20 0.25 1.70 22.2 13 10.5 (610)/(2000)
16 19 0.30 1.50 0.25 2.00 16.6 18 16.0 (305)/(1000)
14 19 0.37 1.90 0.25 2.40 9.50 24 23.8 (305)/(1000)
12 19 0.475 2.40 0.25 2.90 5.53 30 36.9 (305)/(1000)
10 37 0.43 3.00 0.25 3.50 3.95 40 57.7 (305)/(1000)
