Application
High temperature fluoroplastic electric cable is widely used as the lead wire in the environments of aviation, metallurgy, home appliance, lighting, electronic product, instrument and apparatus, electric motors and industrial equipment. It can be used as high frequency video cable in high temperature.
Discription
High temperature fluoroplastic electric cable has the advantage of heat resistance and flame retarding, what's more, the property of anti-corrosion. Its excellent electrical insulation property makes our product high voltage withstanding and low loss at high frequency, which means its long service life.
Parameters
Rated Voltage: 300V
Rated Temperature: 80℃
Standard: UL758, LU1518

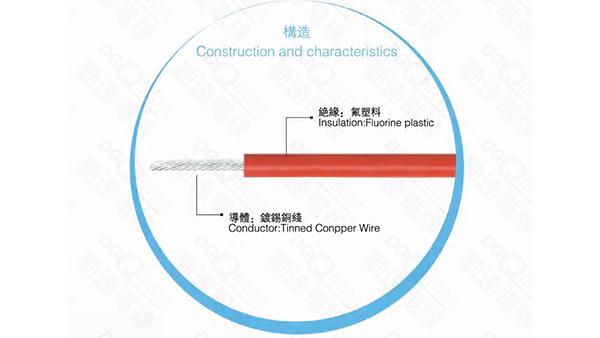

Material: fluoroplastics for the insulation and tinned copper wire for the conductor
Specification:Conductor | Insulation | Max.Cond | Unitlength | |||
Resistance | (M)( Ft ) | |||||
Size | Construction | Resistance | Nominal thickness | Diameter | ( Ω/KM ) | |
( AWG ) | ( No./mm ) | (mm) | (mm) | |||
36 | 710.05 | 0.15 | 0.178 | 0.5 | 1500 | (610)/(2000) |
34 | 710.06 | 0.195 | 0.178 | 0.55 | 932 | (610)/(2000) |
32 | 710.08 | 0.24 | 0.178 | 0.6 | 600 | (610)/(2000) |
30 | 710.1 | 0.3 | 0.178 | 0.65 | 361 | (610)/(2000) |
28 | 710.127 | 0.37 | 0.178 | 0.72 | 227 | (610)/(2000) |
26 | 710.16 | 0.49 | 0.178 | 0.85 | 143 | (610)/(2000) |
24 | 710.2 | 0.61 | 0.178 | 0.96 | 89.3 | (610)/(2000) |
22 | 710.25 | 0.75 | 0.178 | 1.1 | 56.4 | (610)/(2000) |
20 | 19/0.185 | 0.95 | 0.178 | 1.3 | 34 | (610)/(2000) |
18 | 19/0.235 | 1.17 | 0.178 | 1.52 | 22.2 | (305)/( 1000) |
