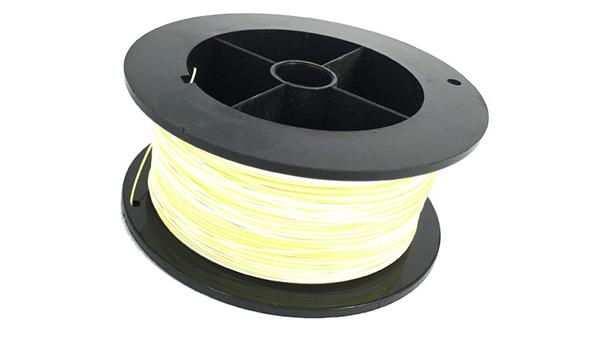

UL10486 Fluoroplastic Insulated Heat Resistant Electrical Wire

Application
Fluoroplastic high temperature cable is widely used in the environments of high temperature, such as home appliance, lighting, electronic product, instrument and apparatus, electric motors and industrial equipment.
For the home appliance, our product can be used as the inner wires of air conditioner, microwave oven, electronic disinfector, electric rice cooker, electric thermos bottle, electric heater, electric oven, electric frying pan, etc.
For the electronics, our product can be used as temperature compensation wire, cold-resistant wire, heating wire, anti-aging wire, fire-retarded wire, etc.

Discription
FFluoroplastic High Temperature Cable has the advantage of heat resistance and flame retarding, what's more, the property of anti-corrosion. Its excellent electrical insulation property makes our product high voltage withstanding and low loss at high frequency, which means its long service life.

Parameters
Rated Voltage: 300V
Rated Temperature: 250℃
Standard: UL758

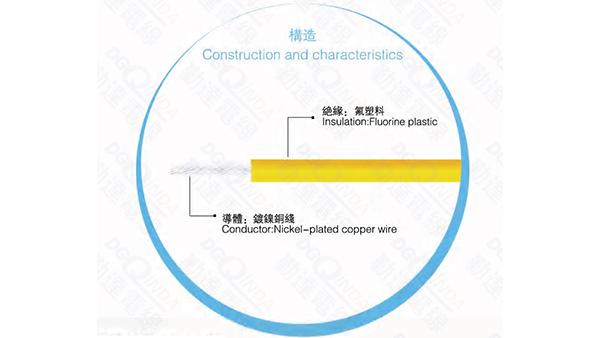

Material: fluoroplastics for the insulation and tinned copper wire for the conductor

Color: white, black, red, brown, yellow, blue, green, olivine, lucency

Specification:
Conductor Insulation Max.Cond Unit length
Resistance (M)(Ft)
Size Construction Diameter Nominal thickness Diameter ( Ω/KM )
( AWG ) ( No./mm ) (mm) (mm) (mm)
32 7/0.08 0.24 0.25 0.74 600 (610) / (2000)
30 7/0.10 0.3 0.25 0.8 361 (610) / (2000)
28 7/0.12 0.36 0.25 0.86 227 (610) / (2000)
26 7/0.16 0.4 0.25 0.98 143 (610) / (2000)
24 7/0.20 0.6 0.25 1.1 89.3 (610)/(2000)
22 19/0.15 0.75 0.25 1.25 56.4 (305)/ (1000)
20 19/0.185 0.93 0.25 1.43 35.2 (305)/(1000)
18 19/0.235 1.17 0.3 1.77 22.2 (305)/(1000)
16 19/0.30 1.5 0.3 2.1 14 (305)/(1000)
14 19/0.37 1.85 0.3 2.45 8.78 (305)/(1000)
12 19/0.475 2.35 0.35 3.05 5.53 (305)/ (1000)
10 37/0.43 3 0.35 3.7 3.476 (305)/ (1000)
8 37/0.54 3.78 0.51 4.8 2.16 Order requirements
7 37/ 0 . 60 4.2 0.51 5.22 1.716
6 37/0.68 4.76 0.51 5 .78 1.361
5 37/0.76 5.32 0.51 6 . 34 1.079
4 37/0.86 6.02 0.8 7 . 62 0.8559
3 7/2.21 6 63 0.8 8.23 0.6788
2 7/2.48 7.44 0.8 9 . 04 0.5384
1 7/2.78 8.34 1.2 10 .7 4 0.4268
0 7/3.20 9.6 1.2 12 0.3367
2/0 7/3.57 10.71 1.2 13 . 11 0.267
3/0 7/3.94 11.82 1.2 14 . 22 0.2119
4/0 7/4.42 13.26 1.2 15 . 66 0.168
