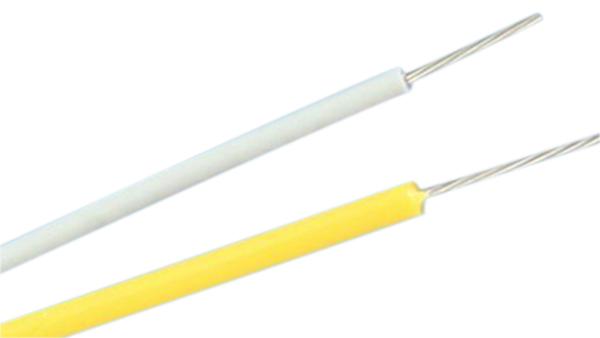

UL1709 Fluoroplastic Insulated Heat Resistant Electrical Wire

Application
High temperature fluoroplastic electric cable is widely used as the lead wire in the environments of aviation, metallurgy, home appliance, lighting, electronic product, instrument and apparatus, electric motors and industrial equipment. It can be used as high frequency video cable in high temperature.

Parameters
Rated Voltage: 300V
Rated Temperature: 200℃
Standard: UL758

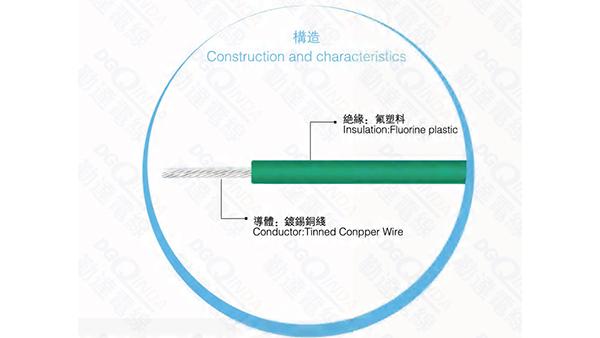

Material: fluoroplastics for the insulation and tinned copper wire for the conductor

Specification:
Conductor Insulation Max.Cond Unit length
Resistance (M)( Ft )
Size Construction Diameter Nominal thickness Diameter ( Ω/KM )
( AWG ) (No/mm) (mm) (mm) (mm)
32 7/0.08 0.24 0.35 0.94 600
30 1/0.26 0.26 0.35 0.96 361 (610) / (2000)
7.01 0.3 0.35 1
28 1/0.32 0.32 0.35 1.02 227 (610) / (2000)
7/0.12 0.36 0.35 1.06
26 7/0.16 0.48 0.35 1.18 143 (610) / (2000)
24 1/0.50 0.5 0.35 1.2 89.3 (610) / (2000)
7/0.20 0.6 0.35 1.3
22 1/0.65 0.65 0.35 1.35 56.4 (305) / (2000)
7/0.254 0.76 0.35 1.46
19/0.15 0.75 0.35 1.45
20 1/0.81 0.81 0.35 1.55 35.2 (305) / ( 1000)
7/0.31 0.93 0.35 1.63
19/0.185 0.93 0.35 1.63
1 8 1/1.02 1.02 0.35 1.72 22.2 (305) / (1000)
7/0.39 1.17 0.35 1.87
19/0.235 1.17 0.35 1.87
17 19/0. 26 1.3 0.35 2 17.6 (305) / (1000)
16 1/1.30 1.3 0.35 2 14 (305) / (1000)
7/0.49 1.47 0.35 2.17
19/0.30 1.5 0.35 2.2
14 19 /0.37 1.85 0.35 2.55 8.78 (305) / (1000)
12 19 /0.475 2.35 0 .35 3.05 5.53 (305) / (1000)
10 19 /0. 6 1 3.01 0.35 3.71 3.476 (305) / (1000)
