Application

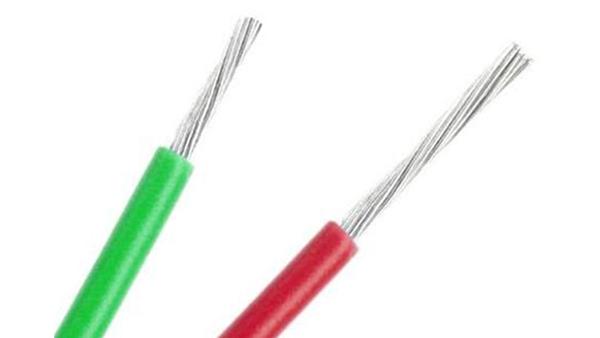

Fluoroplastic insulated heat and fire resistant electric cable is widely used as the lead wire in the environments of aviation, metallurgy, home appliance, lighting, electronic product, instrument and apparatus, electric motors and industrial equipment. It can be used as high frequency video cable in high temperature.
Parameters
Rated Voltage: 300V
Rated Temperature: -85~+200℃
Standard: UL758, LU1518

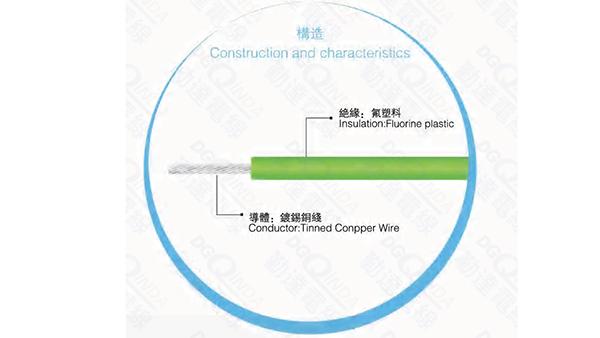

Material: fluoroplastics for the insulation and tinned copper wire for the conductor
Color: white, black, red, brown, yellow, blue, green, olivine, lucency
Specification:AWG | Conductor | Insulation | Maxcond . Resistance 20 ℃Ω/km | Allowabie Current reference | Weight kg/km | Unit length (M)(Ft) | |||
Number NO. | Radius mm | Diameter OD | Thick | Diameter OD | |||||
30 | 7 | 0.10 | 0.30 | 0.25 | 0 80 | 361 | 0.8 | 1.48 | (1220 )/ (4000 ) |
28 | 7 | 0.12 | 0.35 | 0.25 | 0.85 | 242 | 1.0 | 1.78 | (1220 )/ (4000 ) |
26 | 7 | 0.16 | 0.50 | 0.25 | 1.00 | 143 | 2.0 | 2.69 | (1220 )/ (4000 ) |
24 | 7 | 0.20 | 0.60 | 0.25 | 1.10 | 89.3 | 3.0 | 3.59 | (610)/(2000) |
22 | 19 | 0.15 | 0.80 | 0.25 | 1.30 | 56.1 | 6.0 | 5.20 | (610)/(2000) |
20 | 19 | 0.185 | 1.00 | 0.25 | 1.50 | 35.3 | 8.0 | 7.36 | (610)/ (2000) |
18 | 19 | 0 235 | 1.20 | 0.25 | 1.70 | 22.2 | 13 | 10.5 | (610)/(2000) |
16 | 19 | 0.30 | 1.50 | 0.25 | 2.00 | 16.6 | 18 | 16.0 | (305)/(1000) |
14 | 19 | 0.37 | 1.90 | 0.25 | 2.40 | 9.50 | 24 | 23.8 | (1000)/(305) |
12 | 19 | 0.475 | 2.40 | 0.25 | 2.90 | 5.53 | 30 | 36.9 | (1000)/(305) |
10 | 37 | 0 43 | 3.00 | 0.25 | 3.50 | 3.95 | 40 | 57.7 | (1000)/(305) |
