Application
Fluoroplastic High Temperature Cable is widely used in the environments of high temperature, such as home appliance, lighting, electronic product, instrument and apparatus, electric motors and industrial equipment.
Parameters
Rated Voltage: No require
Rated Temperature: -80~+150℃
Standard: UL758, LU1518

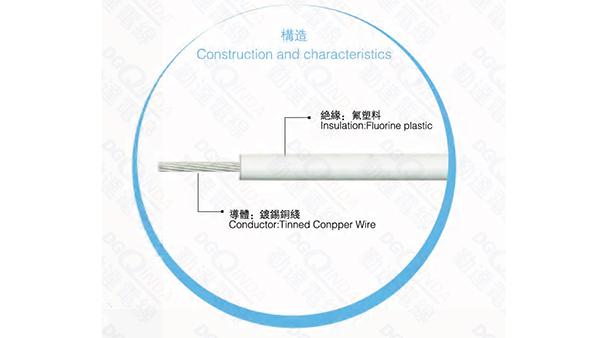

Material: fluoroplastics for the insulation and tinned copper wire for the conductor
Color: white, black, red, brown, yellow, blue, green, olivine, lucency
Specification:AWG | Conductor | Insulation | Maxcond. Resistance 20 ℃Ω/km | Allowabie Current reference | Weight kg/km | Unit length (M)(Ft) | |||
Number NO | Radius mm | Diameter OD | Thick | Diameter OD | |||||
32 | 7 | 0.08 | 0.25 | 0.25 | 0.75 | 600 | 1.0 | 1.22 | (1220)/(4000) |
30 | 7 | 0.10 | 0.30 | 0.25 | 0.80 | 361 | 1.5 | 1.48 | (1220)/(4000) |
28 | 7 | 0.12 | 0.35 | 0.25 | 0.85 | 242 | 2.0 | 1.79 | (1220)/(4000) |
26 | 7 | 0.16 | 0.50 | 0.25 | 1.00 | 143 | 3.0 | 2.70 | (1220)/(4000) |
24 | 7 | 0.20 | 0.60 | 0.25 | 1.10 | 89.3 | 4.0 | 3.58 | (610)/(2000) |
22 | 19 | 0.15 | 0.80 | 0.25 | 1.30 | 561 | 6.0 | 5.21 | (610)/(2000) |
20 | 19 | 0.185 | 1.00 | 0.25 | 1.50 | 35.3 | 8.0 | 7.35 | (610)/(2000) |
18 | 19 | 0.235 | 1.20 | 0.25 | 1.70 | 22.2 | 13 | 10.5 | (610)/(2000) |
16 | 19 | 0.30 | 1.50 | 0.25 | 2.00 | 16.6 | 18 | 16.0 | (305)/(1000) |
