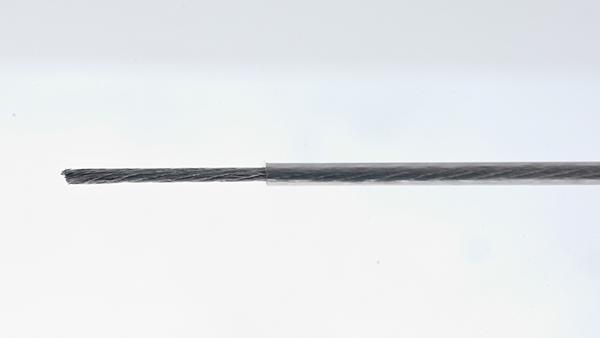

VDE8416 Fluoroplastic Heat and Fire Resistant Electrical Wire

Characteristics
Fluoroplastic heat and fire resistant electrical wire has the advantage of heat resistance and flame retarding, what's more, the property of anti-corrosion. Its excellent electrical insulation property makes our product high voltage withstanding and low loss at high frequency, which means its long service life.

Application
Fluoroplastic heat and fire resistant electrical wire is widely used in the environments of high temperature, such as home appliance, lighting fixture, electronic product, instrument and apparatus, electric motors and industrial equipment.

For the home appliance, our product can be used as the inner wires of air conditioner, microwave oven, electronic disinfector, electric rice cooker, electric thermos bottle, electric heater, electric oven, electric frying pan, etc.

For the electronics, our product can be used as temperature compensation wire, cold-resistant wire, heating wire, anti-aging wire, fire-retarded wire, etc.

Parameters
Rated Voltage: 450/750V
Rated Temperature: 250℃
Standard: VDE0250

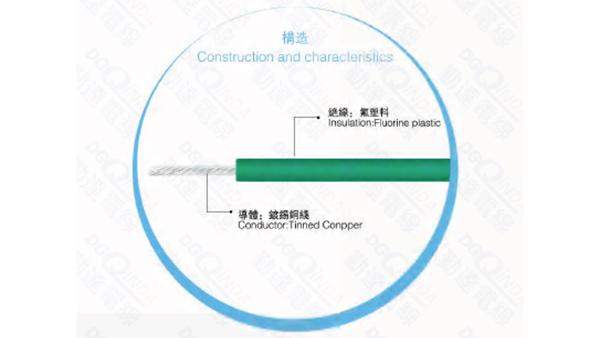

Material:fluoroplastics for the insulation and tinned copper wire for the conductor

Color:white, black, red, brown, yellow, blue, green, olivine, lucency

VDE 8416
Conductor Insulation Max.Cond Resistance ( Ω/Km ) Permissible Ampacity 30 ℃(Amp ) Unit length M (Ft )
Section (mm 2 ) Construction ( No./mm) Diameter (mm) Insulation thickness (mm) Over Diameter (mm)
0.20 7/0.20 0.61 0.30 1.20 94.0 8 (610)/(2000)
19/0.12 0.60 0.30 1.20 94.0 8 (610)/(2000)
40/0.08 0.58 0.30 1.20 94.0 8 (610)/(2000)
0.30 7/0.254 0.77 0.30 1.36 65.3 10 (610) / (2000)
19/0.15 0.76 0.30 1.36 65.3 10 (610) / (2000)
60/0.08 0.72 0.30 1.36 65.3 10 (610) / (2000)
0.50 7/0.31 0.95 0.30 1.56 36.7 15 (610) / (2000)
19/0.185 0.93 0.30 1.56 40.1 15 (610) / (2000)
0.75 1/1.0 1.00 0.30 1.76 24.8 20 (305) / (1000)
7/0.37 1.13 0.30 1.76 24.8 20 (305) / (1000)
19/0.23 1.16 0.30 1.76 26.7 20 (305) / (1000)
1.00 1/1.2 1.20 0.30 1.90 18.2 25 (305) / (1000)
19/0.26 1.31 0.30 1.90 20.0 25 (305) / (1000)
1.25 19/0.30 1.51 0.30 2.10 14.6 32 (305) / (1000)
1.50 19/0.32 1.61 0.30 2.20 13.7 38 (305) / (1000)
2.00 19/0.37 1.86 0.35 2.56 9.0 45 (200) / (656)
2.50 19/0.41 2.06 0.35 2.76 8.2 50 (200) / (656)
4.00 19/1.52 2.61 0.40 3.45 5.1 60 (100) / (328)
6.00 37/0.46 3.23 0.40 4.05 3.4 80 (100) / (328)
