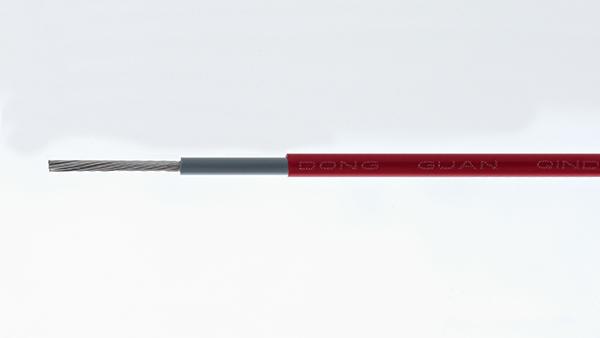

VDE 250℃ Dual Layer Fluoroplastic Insulated Wire

Characteristics and Application
Fluoroplastic Electric Cable and Wire has the advantage of heat resistance and flame retarding, what's more, the property of anti-corrosion. Its excellent electrical insulation property makes our product high voltage withstanding and low loss at high frequency, which means its long service life.

Fluoroplastic Electric Cable and Wire is widely used in the environments of high temperature, such as home appliance, lighting, electronic product, instrument and apparatus, electric motors and industrial equipment.

For the home appliance, our product can be used as the inner wires of air conditioner, microwave oven, electronic disinfector, electric rice cooker, electric thermos bottle, electric heater, electric oven, electric frying pan, etc.

For the electronics, our product can be used as temperature compensation wires, cold-resistant wires, heating wires, anti-aging wires, fire-retarded wires and etc.

VDE 250℃ Dual Layer Fluoroplastic Insulated Wire
Conductor Insulation Max.Cond Resistance( Ω/Km) Permissible Ampacity 30 ℃(Amp ) Unit length M (Ft )
Section (mm2) Construction (No./mm) Diameter (mm) Insulation thickness(mm) Jacket Thickness (mm) Over Diameter (mm)
0.20 7/0.20 0.61 0.25 0.20 1.50 89.3 8 (610) / (2000)
19/0.12 0.60 0.25 0.20 1.50 94.0 8 (610) / (2000)
40/0.08 0.58 0.25 0.20 1.50 94.0 8 (610) / (2000)
0.30 7/0.254 0.77 0.25 0.20 1.70 65.3 10 (610) / (2000)
19/0.15 0.76 0.25 0.20 1.70 65.3 10 (610) / (2000)
60/0.08 0.72 0.25 0.20 1.70 65.3 10 (610) / (2000)
0.50 7/0.31 0.95 0.25 0.20 1.90 36.7 15 (305)/( 1000)
19/0.185 0.93 0.25 0.20 1.90 40.1 15 (305) / (1000)
0.75 1/1.0 1.00 0.25 0.20 2.10 24.8 20 (305)/( 1000)
7/0.37 1.13 0.25 0.20 2.10 24.8 20 (305) / (1000)
19/0.23 1.16 0.25 0.20 2.10 26.7 20 (305) / (1000)
1.00 1/1.2 1.20 0.25 0.25 2.30 18.2 25 (305)/( 1 000)
19/0.26 1.31 0.25 0.25 2.30 20.0 25 (305) / (1000)
1.25 19/0.30 1.51 0.25 0.25 2.50 14.6 32 (305) / (1000)
1.50 19/0.32 1.61 0.25 0.25 2.60 13.7 38 (305) / (1000)
2.00 19/0.37 1.86 0.30 0.30 3.06 9.0 45 (200) / (656)
2.50 19/0.41 2.06 0.30 0.30 3.26 8.2 50 (200) / (656)
