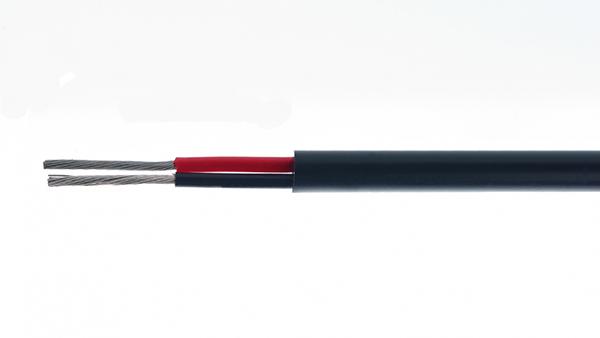

UL2261 Fluoroplastic Insulated High Temperature Wire

Characteristics
Fluoroplastic insulated high temperature wire has the advantage of heat resistance and flame retarding, what's more, the property of anti-corrosion. Its excellent electrical insulation property makes our product high voltage withstanding and low loss at high frequency, which means its long service life.

Application
Fluoroplastic Electric Cable and Wire is widely used in the environments of high temperature, such as home appliance, lighting, electronic product, instrument and apparatus, electric motors and industrial equipment.
For the home appliance, our product can be used as the inner wires of air conditioner, microwave oven, electronic disinfector, electric rice cooker, electric thermos bottle, electric heater, electric oven, electric frying pan, etc.
For the electronics, our product can be used as temperature compensation wire, cold-resistant wire, heating wire, anti-aging wire, fire-retarded wire, etc.

UL Style No.2261
Trade No Conductor Insulation Electrical Characteristic Packing
Size AWG Structure No.(mm) Insulation Thickness (mm) Ave.PVC Thickness (mm) Diameter (mm) Maximum Conductor Resistance at20 ℃Ωkm (coil)
2261-P220 20x2C 19/0.185 0.33 0.80 6.0 34.60 300
2261-P218 18x2C 19/0.235 0.33 0.80 6.0 22.20 300
2261-P217 17x2C 19/0.265 0.33 0.80 6.5 17.20 300
2261-P216 16x2C 19/0.29 0.33 0.80 7.0 13.70 300
2261-P215 15x2C 19/0.32 0.33 0.80 7.0 10.90 300
2261-P318 18x3C 19/0.19 0.33 0.80 6.2 22.20 300
2261-P317 17x3C 19/0.235 0.33 0.80 6.5 17.20 300
2261-P316 16x3C 19/0.29 0.33 0.80 7.0 13.70 300
2261-P315 15x3C 19/0.32 0.33 0.80 7.5 10.90 200
