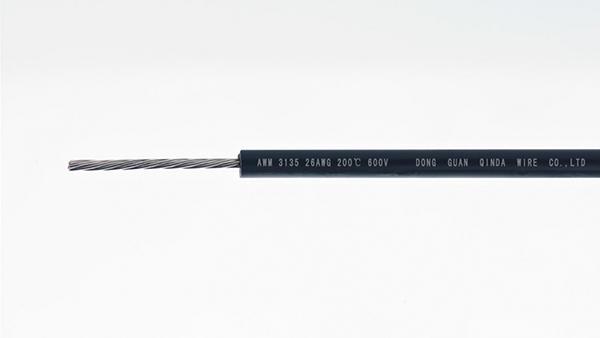

UL3135 Rubber Insulated Electrical Cable

Characteristics
Silicone electrical cable is suitable for rated AC voltage 0.6-1.0 KV or below electric appliance. Our product is qualified with the properties of heat-and-cold resistant, anti-corrosions such as acid, alkali and corrosive gas, waterproof and etc. All these properties above make it that our silicone electrical cable functions quite well and long in extra environments and widely applied in the industry of metallurgy, electric power, petrochemical, electronics, automotive and etc.

Application: home appliance, lighting, industry machine, electric heating

Parameters
Rated Voltage: 60V
Rated Temperature: -60℃~200℃
Standard: UL758, L1581, SAC22.2 NO.210.2

UL Style No.3135
AWG Conductor Insulation Maxcond. Resistance ( A ) Allowabie kg/km Unit length ft/m
20 ℃ Ω/km Current
NO. mm OD Thick OD Reference
26 7 0.16 0.5 0.8 2.1 143 3 6.27 (1220) / (4000)
24 7 0.2 0.6 0.8 2.2 89.3 4 7.35 (915) / (3000)
22 7 0.254 0.8 0.8 2.4 56.1 6 9.44 (915) / (3000)
20 11 0.254 1 0.8 2.6 35.3 8 12.1 (915) / (3000)
18 16 0.254 1.2 0.8 2.8 22.2 13 15.3 (915) / (3000)
16 26 0.254 1.5 0.8 3.1 16.6 18 21.2 (610) / (2000)
14 41 0.254 1.9 0.8 3.5 9.5 24 30 (610) / (2000)
12 65 0.254 2.4 0.8 4 5.53 30 43.5 (305) / ( 1000)
