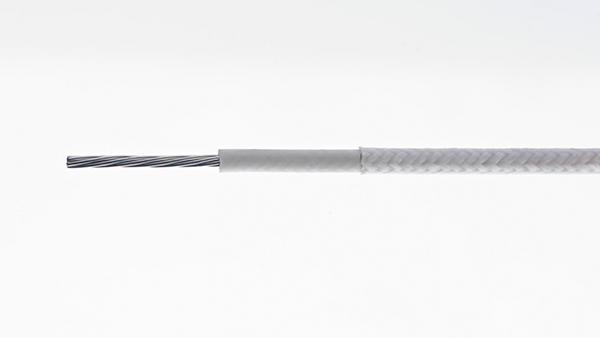

VDE HO5SJ-K Silicone Insulated Electrical Cable

Characteristics
Our product, silicone electrical cable, is equipped in electric appliances whose rated AC voltage is 0.6-1.0 KV or below. Our product has excellent properties of heat-and-cold resistant, anti-corrosions (acid, alkali and corrosive gas), waterproof and etc. The properties above make it that our silicone electrical cable functions quite well and long in extra environments. Our product is widely applied in metallurgy, electric power, petrochemical, electronics and automotive processing industries.

Application: home appliance, lighting, industry machine, electric heating

Parameters
Rated Voltage: 300V
Rated Temperature: -60℃~150℃
Standard: UL758 UL1581 CSAC22.2 NO.210.2

VDE H05SJ-K
Conductor Isulation Max.Cond Unit length
Resistance (M)( Ft )
Section Construction Diameter Nominal thickness (mm) Fiber Glass Diameter ( Ω/km)
(mm 2 ) ( No./mm ) (mm) thickness (mm) (mm)
0.5 20/0.18 0.92 0.7 0.15 2.62 40.1 (305)(1000)
0.75 30/0.18 1.13 0.7 0.15 2.83 26.7 (305)(1000)
1 40/0.18 1.31 0.7 0.15 3.01 20 (305)(1000)
1.5 30/0.254 1.6 0.8 0.15 3.5 13.7 (200)(656)
2.5 50/0.254 2.08 0.85 0.15 4.08 7.16 (200)(656)
4 56/0.30 2.62 0.85 0.15 4.62 4.7 (200)(656)
