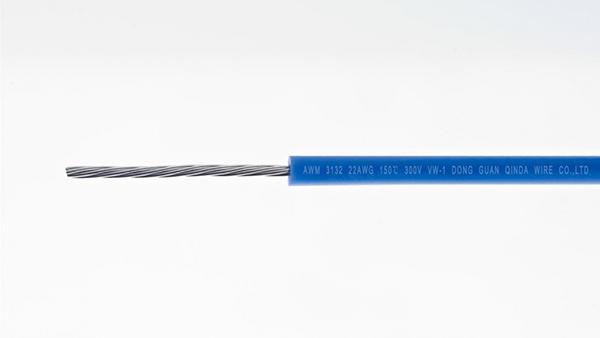

UL3132 Silicone Insulated Electrical Cable

Characteristics
Silicone electrical cable is suitable for electric appliances whose rated AC voltage is 0.6-1.0 KV or below. Our product is qualified with the properties of heat-and-cold resistant, anti-corrosions such as acid, alkali and corrosive gas, waterproof and etc. All these above makes our silicone electrical cable functions quite well and long in extra environments. Our product is widely applied in metallurgy, electric power, petrochemical, electronics and automotive processing industries.

Application: home appliance, lighting, industry machine, electric heating

Parameters
Rated Voltage: 300V
Rated Temperature: -60℃~150℃
Standard: UL758 UL1581 CSAC22.2 NO.210.2

Material: silicone for the insulation and tinned copper wire for the conductor

Color: white, black, red, brown, yellow, blue, green, olivine, lucency

UL Style No.3132
AWG Conductor Insulation Maxcond. Resistance ( A ) Allowabie kg/km Unit length
20 ℃Ω/km Current ft/m.
NO. mm OD Thick OD Reference
30 7 0.1 0.3 0.4 1.1 361 1.5 1.57 (1220) / ( 4000)
28 7 0.12 0.35 0.4 1.15 237 2 1.86 (1220) / ( 4000)
26 7 0.16 0.5 0.4 1.3 143 3 2.7 (1220) / ( 4000)
24 7 0.2 0.6 0.4 1.4 89.3 4 3.56 (610) / (2000)
22 7 0.254 0.8 0.4 1.6 56.1 6 5.18 (610) / (2000)
20 21 0.18 1 0.4 1.8 34.6 9 7.21 (610) / (2000)
18 30 0.18 1.2 0.4 2 222 14 9.7 (610) / (2000)
16 26 0.254 1.5 0.4 2.3 16.6 18 15.3 (305) / (1000)
