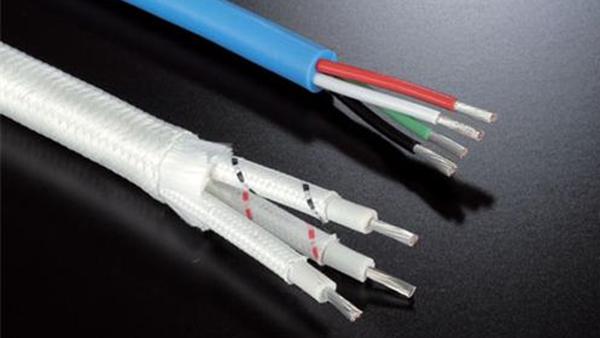

Fluoroplastic Silicone Insulated Electrical Cable
This cable is mainly applied in home appliance, lighting, industry machine, electric heating and etc.
Parameters
Rated Voltage: 600V
Rated Temperature: 200℃
Standard: UL758, VDE0250

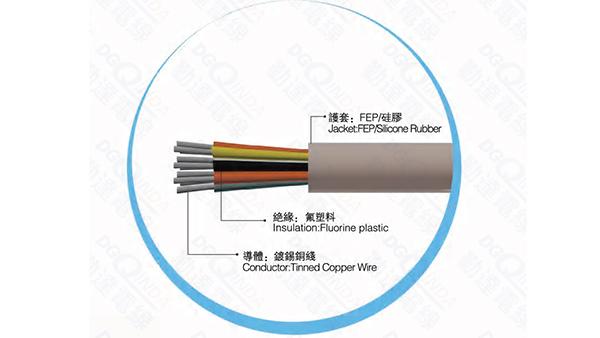

Material: FEP/silicone for the coat, fluoroplastic for the insulation layer and tinned copper wire for the conductor
Conductor | Insulation | Max.Cond | Unit length | ||||
Resistance | (M)(Ft) | ||||||
Section | Construction | Diameter | Nominal thickness (mm) | SR Thickness | Diameter | ( Ω/KM ) | |
(mm) | ( No./mm ) | (mm) | (mm ) | (mm) | |||
2 x 0.50 | 19/0.185 | 0.96 | 0.25 | 0.8 | 4.5 | 40.1 | (100) |
2 x 0.75 | 19/0.23 | 1.16 | 0.25 | 0.8 | 4.5 | 26.7 | (100) |
2 x 1.00 | 19/0.26 | 1.31 | 0.25 | 0.8 | 5 | 20 | (100) |
2 x 1.25 | 19/0.29 | 1.46 | 0.25 | 0.8 | 5.5 | 14.35 | (100) |
2 x 1.50 | 19/0.302 | 1.61 | 0.25 | 0.8 | 6 | 13.7 | (100) |
2 x 2.00 | 19/0.307 | 1.86 | 0.30 | 0.8 | 6.5 | 8.78 | (100) |
2 x 2.50 | 19/0.41 | 2.06 | 0.30 | 0.8 | 7 | 7.16 | (100) |
3 x 0.50 | 19/0.185 | 0.96 | 0.25 | 0.8 | 4.8 | 40.1 | (100) |
3 x 0.75 | 19/0.23 | 1.16 | 0.25 | 0.8 | 5 | 26.7 | (100) |
3 x 1.00 | 19/0.26 | 1.31 | 0.25 | 0.8 | 5.5 | 20 | (100) |
3 x 1.25 | 19/0.29 | 1.46 | 0.25 | 0.8 | 6 | 14.35 | (100) |
3 x 1.50 | 19/0.302 | 1.61 | 0.25 | 0.8 | 6.5 | 13.7 | (100) |
3 x 2.00 | 19/0.307 | 1.86 | 0.30 | 0.8 | 7 | 8.78 | (100) |
3 x 2.50 | 19/0.41 | 2.06 | 0.30 | 0.8 | 7.5 | 7.16 | (100) |
4 x 0.50 | 19/0.185 | 0.96 | 0.25 | 0.8 | 5 | 40.1 | (100) |
4 x 0.75 | 19/0.23 | 1.16 | 0.25 | 0.8 | 5.5 | 26.7 | (100) |
4 x 1.00 | 19/0.26 | 1.31 | 0.25 | 0.8 | 6 | 20 | (100) |
4 x 1.25 | 19/0.29 | 1.46 | 0.25 | 0.8 | 6.5 | 14.35 | (100) |
4 x 1.50 | 19/0.302 | 1.61 | 0.25 | 0.8 | 7 | 13.7 | (100) |
4 x 2.00 | 19/0.307 | 1.86 | 0.30 | 0.8 | 7.5 | 8.78 | (100) |
4 x 2.50 | 19/0.41 | 2.06 | 0.30 | 0.8 | 8 | 7.16 | (100) |
