Characteristics

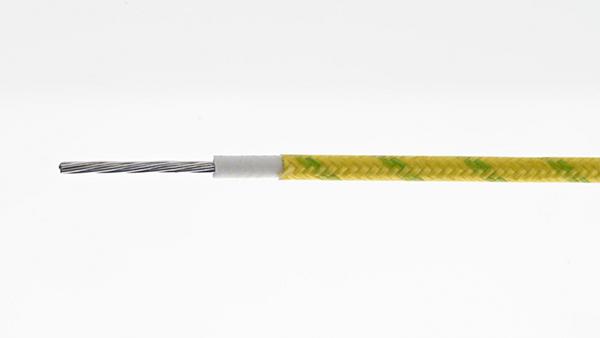

Silicone electrical cable is suitable for rated AC voltage 0.6-1.0 KV or below electric appliance. Our product is qualified with the properties of heat-and-cold resistant, anti-corrosions such as acid, alkali and corrosive gas, waterproof and etc. All these properties above make it that our silicone electrical cable functions quite well and long in extra environments and widely applied in the industry of metallurgy, electric power, petrochemical, electronics, automotive and etc.
Application: home appliance, lighting, industry machine, electric heating
Parameters
Rated Voltage: 300V
Rated Temperature: -60℃~200℃
Standard: UL758 UL1581 CSAC22.2 NO.210.2
Material: silicone for the insulation and tinned copper wire for the conductor
Color: white, black, red, brown, yellow, blue, green, olivine, lucency
UL Style No.3122AWG | Conductor | Insulation | Max.Cond Resistance | Allowabie Current reference | kg/km | Unit length | ||||
NO. | mm | OD | thickness | braid Thick | Diameter | ( Ω/km) | ( A ) | ft/m | ||
26 | 7 | 0.16 | 0.5 | 0.38 | 0.22 | 1.7 | 143 | 2 | 4.5 | (610) / (2000) |
24 | 7 | 0.2 | 0.6 | 0.38 | 0.22 | 1.8 | 89.3 | 3 | 5.5 | (610) / (2000) |
22 | 7 | 0.254 | 0.8 | 0.38 | 0.22 | 2 | 56.1 | 6 | 7.4 | (610) / (2000) |
20 | 7 | 0.31 | 1 | 0.38 | 0.22 | 2.2 | 35.3 | 8 | 9.6 | (610) / (2000) |
18 | 7 | 0.39 | 1.2 | 0.38 | 0.22 | 2.4 | 22.2 | 13 | 13 | (610) / (2000) |
16 | 7 | 0.5 | 1.5 | 0.38 | 0.22 | 2.7 | 16.6 | 16 | 18.9 | (305)/( 1000) |
