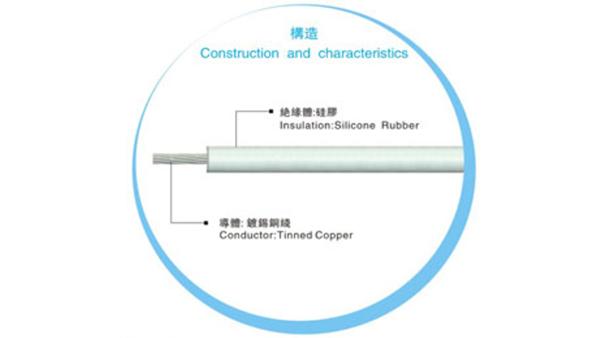

Characteristics

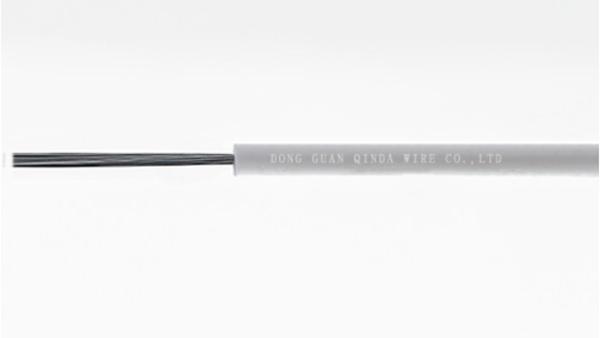

Silicone electrical cable is suitable for rated AC voltage 0.6-1.0 KV or below electric appliance. Our product is qualified with the properties of heat-and-cold resistant, anti-corrosions such as acid, alkali and corrosive gas, waterproof and etc. All these properties above make it that our silicone electrical cable functions quite well and long in extra environments and widely applied in the industry of metallurgy, electric power, petrochemical, electronics, automotive and etc.
Application: home appliance, lighting, industry machine, electric heating
Parameters
Rated Voltage: 3KV 6KV 10KV 20KV 30KV
Rated Temperature: 200℃
Standard: UL758
Conductor | Insulation | ||||||||||
Size (AWG ) | Construction | Diameter | 3000V | 6000V | 10000V | 20000V | 30000V | ||||
( No./mm ) | ( mm ) | Nominal | Diameter | Nominal | Diameter | Nominal | Diameter | Nominal | Diameter | Nominal | |
Thickness | ( mm ) | Thickness | ( mm ) | Thickness | ( mm ) | Thickness | ( mm ) | Thickness | |||
( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | |||||||
28 | 7 × 0.12 | 0.37 | 0.5 | 1.37 | 0.7 | 1.77 | 1 | 2.37 | 1.3 | 2.97 | 1.7 |
26 | 7 × 0.15 | 0.49 | 0.5 | 1.49 | 0.7 | 1.89 | 1 | 2.49 | 1.3 | 3.09 | 1.7 |
24 | 14 × 0.14 | 0.6 | 0.5 | 1.6 | 0.7 | 2 | 1 | 2.6 | 1.3 | 3.2 | 1.7 |
22 | 22 × 0.14 | 0.76 | 0.5 | 1.76 | 0.7 | 2.14 | 1 | 2.76 | 1.3 | 3.36 | 1.7 |
20 | 32 × 0.14 | 0.91 | 0.5 | 1.91 | 0.7 | 2.31 | 1 | 2.91 | 1.3 | 3.51 | 1.7 |
18 | 52 × 0.14 | 1.17 | 0.5 | 2.17 | 0.7 | 2.57 | 1 | 3.17 | 1.3 | 3.77 | 1.7 |
16 | 52 × 0.18 | 1.5 | 0.5 | 2.5 | 0.7 | 2.9 | 1 | 3.5 | 1.3 | 4.1 | 1.7 |
