UL3367 Rubber Insulated Electrical Cable

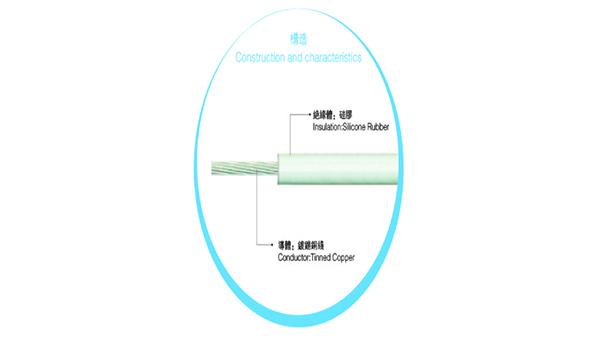

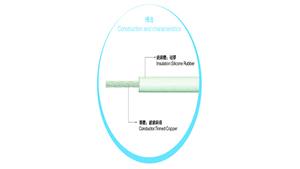

Characteristics
Silicone electrical cable is suitable for rated AC voltage 0.6-1.0 KV or below electric appliance. Our product is qualified with the properties of heat-and-cold resistant, anti-corrosions such as acid, alkali and corrosive gas, waterproof and etc. All these properties above make it that our silicone electrical cable functions quite well and long in extra environments and widely applied in the industry of metallurgy, electric power, petrochemical, electronics, automotive and etc.

Application: home appliance, lighting, industry machine, electric heating

Parameters
Rated Voltage: 300V
Rated Temperature: 280℃
Standard: UL758

UL Style No.3367
Conductor Insulation Max.Cond Unit length
Resistance (M)( Ft )
Size Construction Diameter Nominal thickness (mm) Diameter ( Ω/km)
( AWG ) (No./mm) (mm) (mm)
26 7/0.16 0.48 0.45 1.38 143 (305) / (1000)
24 7/0.20 0.60 0.45 1.50 89.3 (305) / (1000)
22 7/0.25 0.76 0.45 1.66 56.4 (305) / (1000)
20 7/0.31 0.93 0.45 1.83 35.2 (305) / (1000)
18 7/0.39 1.17 0.45 2.07 22.2 (305) / (1000)
