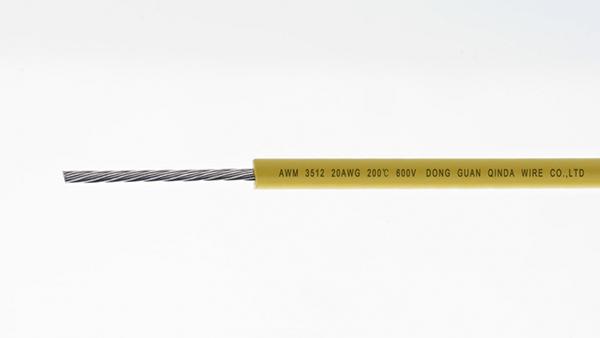

UL3512 Heat Resistant Rubber Cable

Characteristics
Silicone electrical cable is suitable for rated AC voltage 0.6-1.0 KV or below electric appliance. Our product is qualified with the properties of heat-and-cold resistant, anti-corrosions such as acid, alkali and corrosive gas, waterproof and etc. All these properties above make it that our silicone electrical cable functions quite well and long in extra environments and widely applied in the industry of metallurgy, electric power, petrochemical, electronics, automotive and etc.

Application: home appliance, lighting, industry machine, electric heating

UL Style No.3512
AWG Conductor Isulation Max.Cond Resistance ( Ω/KM ) Allowable current reference kg/km Unit length (ft/m )
NO. mm OD Thick OD
20 26 0.16 0.940 0.76 2.500 35.3 8.0 11.3 (610 )(2000 )
18 16 0.254 1.170 0.76 2.700 22.2 13 14.6 (610)(2000)
16 26 0.254 1.500 0.76 3.020 16.6 18 20.6 (610)(2000)
14 41 0.254 1.880 0.76 3.400 9.5 24 29.2 (610)(2000)
12 65 0.254 2.370 0.76 3.900 5.53 30 42.6 (305)(1000)
10 105 0.254 3.010 0.76 4.500 3.95 40 63.7 (305)(1000)
9 133 0.254 3.910 1.20 6.300 3.30 46 97.2 (305)(1000)
8 133 0.280 4.310 1.20 6.700 2.62 59 114
7 133 0.310 4.770 1.60 8.00 1.93 72 151
6 133 0.354 5.450 1.60 8.600 1.58 84 185
5 133 0.400 6.150 1.60 9.300 1.23 96 227
4 133 0.446 6.860 1.60 10.100 1.03 110 276
3 133 0.500 7.690 1.60 10.900 0.78 123 336
