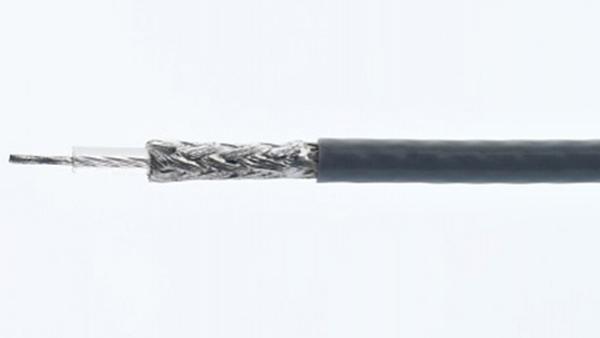

RG copper braided coaxial cable performs excellent in current transmission and stably functions in 3G network. This cable is free from electromagnetic induction and bending, its flexibility allows its application in folding and rotational electric motors. Its usage temperature is available from -55℃ to 250℃ and it's mainly applied in high-speed RF signal transmission of MRC (Mobile Radio Communication) or FRC (Fixed Radio Communication) and those with similar technical electronic equipment.
Parmeters:
Rated Voltage: 1000V
Rated Temperature: -55~200℃
Standards: MIL-C-17

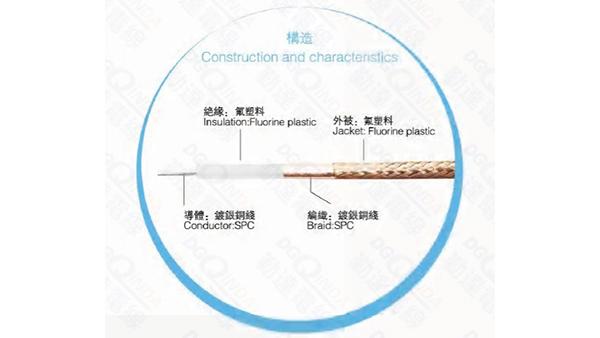

Material: Fluoroplastics for insulating layer and the coat, silver-plated copper (SPC) for the conductor and the braid.
Color: White, black, red, brown, yellow, blue, green, olivine, lucency
| Type | Inner structure mm | Insulated di ameter mm | Braided screen | Overall diam eter mm | Impe dance Ω | Attenuatlon≤dB/100mm | ||
| 400M Hz | 1000M H z | 3000M Hz | ||||||
| RG-142/U | 1 / 0 . 93 | 3.0±0 . 18 | Double silver plated copper wire | 4.23±0 . 15 | 50±3.5 | 21 | 52 | 93 |
| RG-178/U | 7 / 0 10 | 0.87±0.07 | Single layer silver plated copper wire | 1.80±0 . 15 | 50± 3.5 | 85 | 180 | 340 |
| RG-179/U | 7 / 0 . 10 | 1 . 50±0 . 18 | Single layer silver plated copper wire | 2.50 ±0.15 | 75±3.5 | 50 | 130 | 200 |
| RG-180/U | 7 / 0 . 10 | 2.59±0 . 18 | Single layer silver plated copper wire | 3.5 8±0.15 | 95±3.5 | 32 | 61 | 134 |
| RG-316/U | 7 / 0 . 17 | 1.50± 0.18 | Single layer silver plated copper wire | 2.50±0.15 | 50±3.5 | 45 | 95 | 180 |
| RG-302/U | 1 / 0.64 | 3.0 ±0.18 | Double silver plated copper wire | 4.23±0.15 | 75±3.5 | 31 | 57 | 105 |
| RG-303/U | 1 / 0 . 93 | 3.0±0. 18 | Single layer silver plated copper wire | 4.23±0.15 | 50±3.5 | 2 3 | 53 | 95 |
| RG-304/U | 1 / 1 .4 9 | 4 . 6±0.18 | Double silver plated copper wire | 7.10±0.15 | 50±3.5 | 14 | 27 | 48 |
| RG-400/U | 19/0.20 | 3.0±0. 18 | Double silver plated copper wire | 4.23±0.15 | 50±3.5 | 22 | 52 | 93 |
| RG-404/U | 7/ 0 . 10 | 0.87± 0.07 | Single layer silver plated copper wire | 1.80±0.15 | 50±3.5 | 85 | 180 | 340 |
