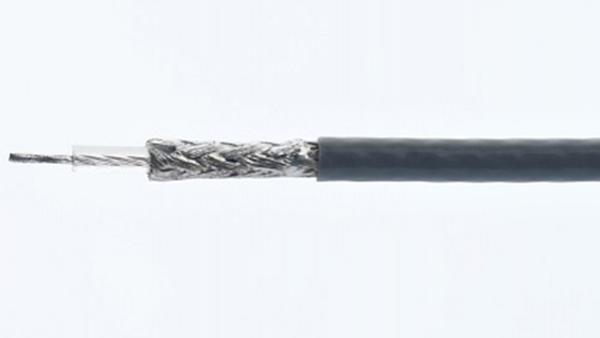

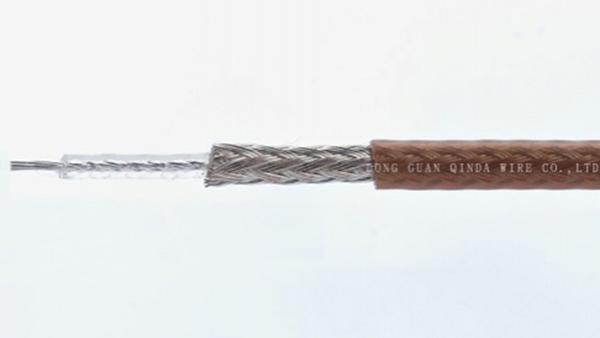

RF Fluoroplastic Insulated Coaxial Cable

RF fluoroplastic insulated coaxial cable has excellent property of current transmission and it can stably work in 3G network. This cable is free from electromagnetic induction and bending, its good flexibility makes it widely applied in folding and rotational electric motors. Its usage temperature is available from -55℃ to 250℃ and it's mainly applied in high-speed RF signal transmission of MRC (Mobile Radio Communication) or FRC (Fixed Radio Communication) and those with similar technical electric motors.

Parmeters:
Rated Voltage: 110V
Rated Temperature: 200℃

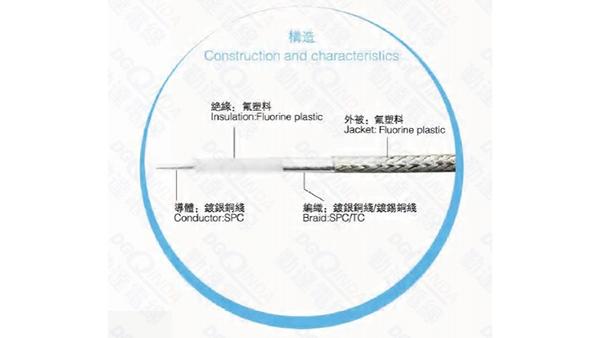

Material: Fluoroplastics for insulating layer and the coat, silver-plated copper (SPC) for the conductor and silver-plated copper or tinned copper for the braid.

Standards:
ZL20102 0588247.7
ZL20102 0588221.2
ZL20102 0587509.8

Specification:
Conductor Insulation Braid shield Jacket Characteristic impedance at TDR Ω
Size ( AWG ) Construction ( No./mm ) Material NomDia (mm) Nomthicks (mm) Material NomDia (mm)
Nomthicks (mm) Material NomDia (mm)
36 7/005 SPC 0.15 0.11 FEP 0.40 SPC single-layer 0.10 FEP 0.80 50
34 1/0 . 16 SPC 0.16 0.34 FEP 0.84 SPCsingle-layer 0.22 FEP 1.48 75
34 7/006 SPC 0.19 0.17 FEP 0.53 SPC single-layer 0.13 FEP 0.98 50
32 7/008 SPC 0.24 0.51 FEP 1.26 SPCsingle-layer 0.22 FEP 1.90 75
32 7/0.08 SPC 0.24 0.21 FEP 0.66 SPCdouble-layer 0.13 FEP 1.32 50
32 7/0.08 SPC 0.24 0.22 FEP 0.68 SPCsingle-layer 0.13 FEP 1.13 50
30 1/0.26 SPC 0.26 0.27 FEP 0.80 SPCsingle-layer 0.13 FEP 1.25 50
30 1/26 SPC 0.26 0.27 FEP 0.80 SPCsingle-layer 0.13 FEP 1.50 50
30 7/0.10 SPC 0.30 0.26 FEP 0.83 SPCsingle-layer 0.18 FEP 1.38 50
29 1/0.30 SPC 0.30 0.34 PVC 0.89 SPCsingle-layer 0.20 FEP 1.58 50
28 1/0.33 SPC 0.33 0.30 PVC 1.03 TDsingle-layer 0.31 FEP 1.86 50
